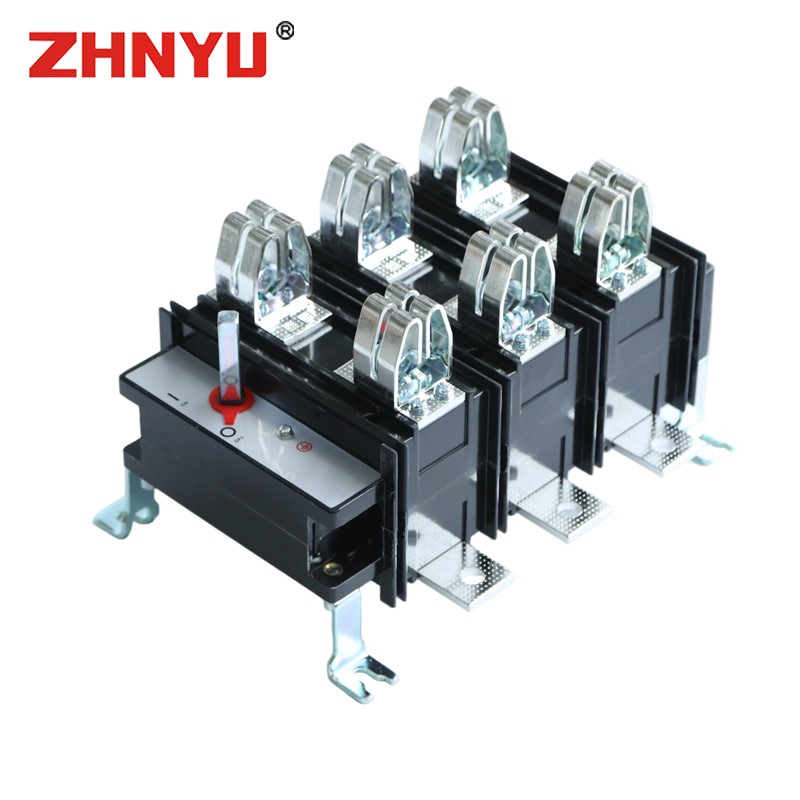

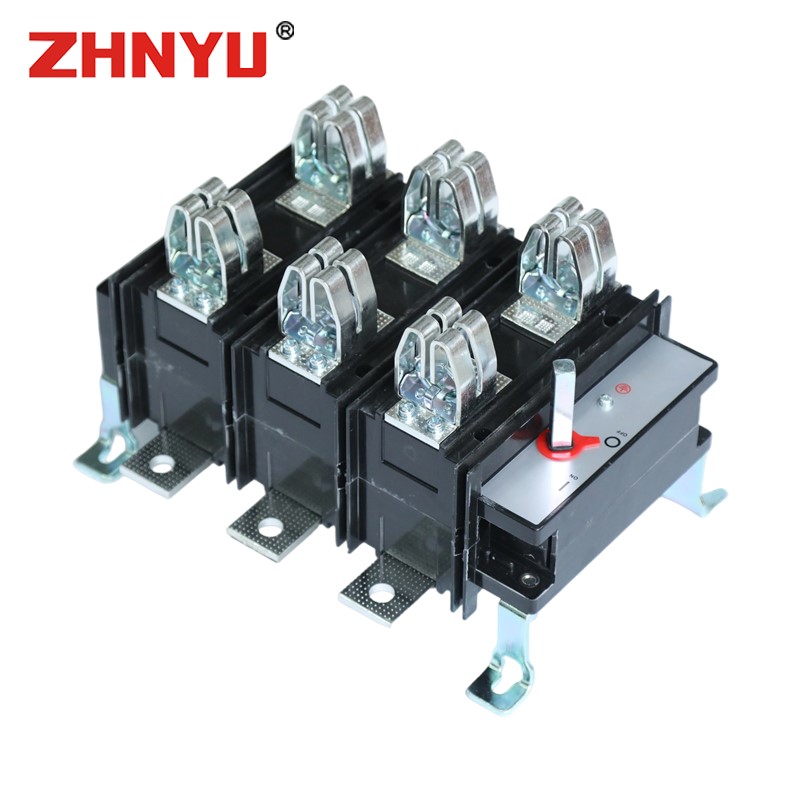

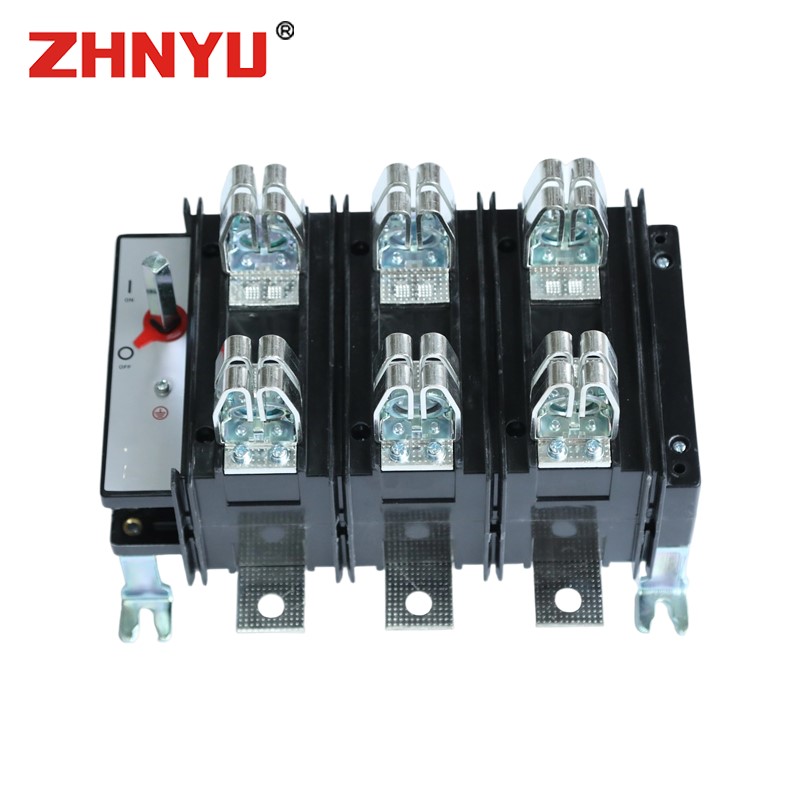

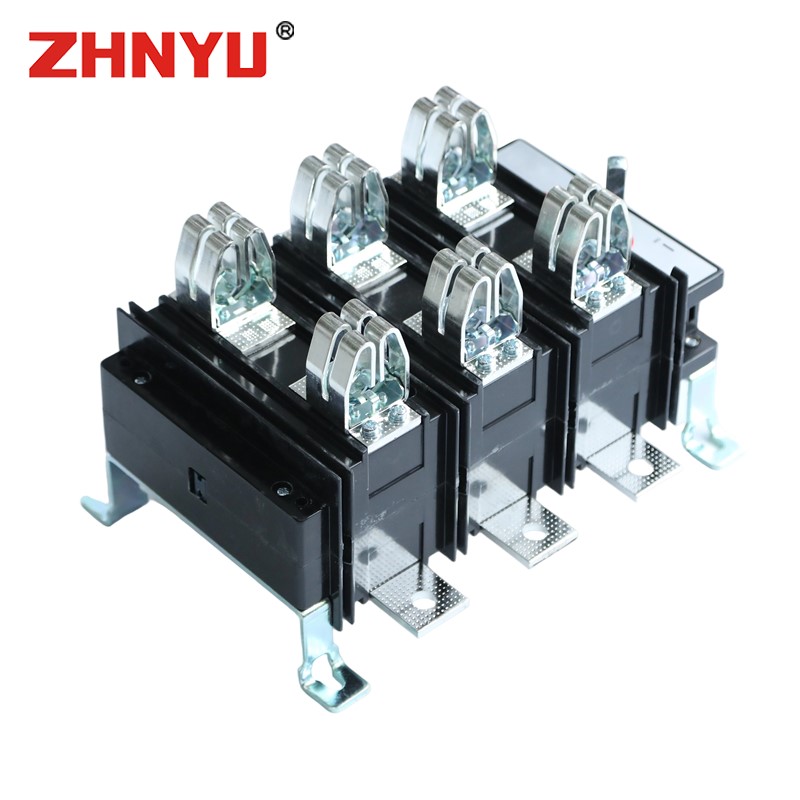

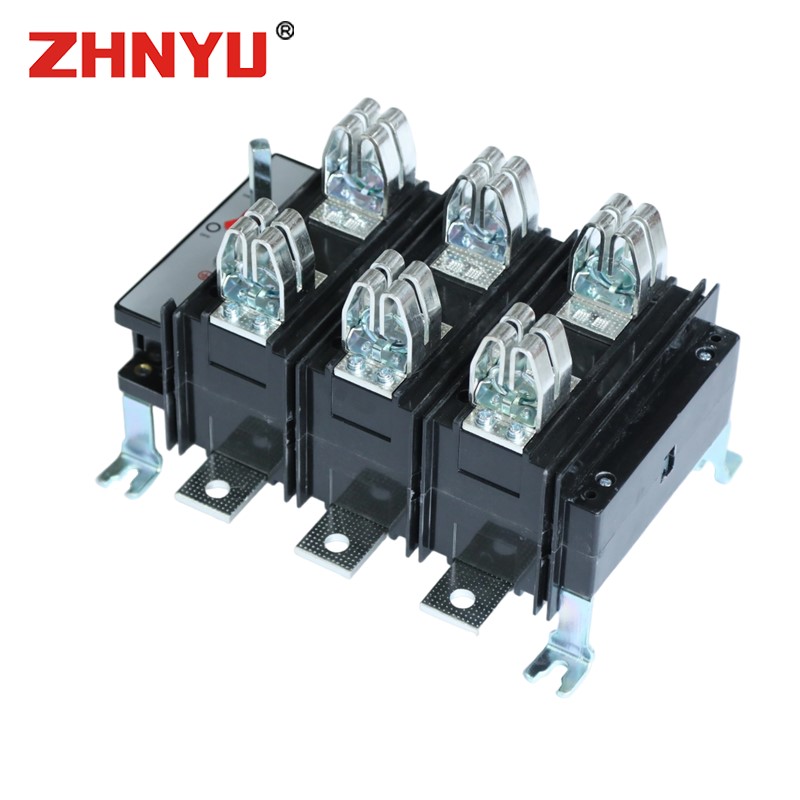

Disconnector fuse Main technical parameters
HH15(QSA)-□/□□
|
Specifications |
QSA- 125 |
QSA- 160 |
QSA- 250 |
QSA- 400 |
QSA- 630 |
QSA- 800 |
QSA- 1000 |
QSA- 1250 |
|
|
Number of main poles |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
|
|
Rated insulation voltage Ui |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rated impulse withstand voltage Uimp |
kV |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Rated working voltage Ue |
V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
|
Agreed heating current |
A |
125 |
160 |
250 |
400 |
630 |
800 |
1000 |
1250 |
|
Rated working current |
A |
125/100 |
160/100 |
250/200 |
400/315 |
630/500 |
800/500 |
1000/800 |
1250/1000 |
|
Rated limiting short-circuit current |
kA |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
|
Mechanical life |
time |
15000 |
12000 |
12000 |
12000 |
3000 |
3000 |
1000 |
1000 |
|
Electrical life |
time |
1000 |
300 |
300 |
300 |
200 |
150 |
100 |
100 |
|
Fuse size |
|
00 |
00 |
1 |
2 |
3 |
3 |
RSO(RS3)-1250 |
4 |
|
Operating torque |
Nm |
7.5 |
16 |
16 |
16 |
30 |
30 |
38 |
38 |
|
Agreed heating current of auxiliary contact Ith 400V、AC-15A |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
HH15(QSA)-□/□□
|
Specifications |
QSA- 125 |
QSA- 160 |
QSA- 250 |
QSA- 400 |
QSA- 630 |
QSA- 800 |
QSA- 1000 |
QSA- 1250 |
|
|
Number of main poles |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
|
|
Rated insulation voltage Ui |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rated impulse withstand voltage Uimp |
kV |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Rated working voltage Ue |
V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
|
Agreed heating current |
A |
125 |
160 |
250 |
400 |
630 |
800 |
1000 |
1250 |
|
Rated working current |
A |
125/100 |
160/100 |
250/200 |
400/315 |
630/500 |
800/500 |
1000/800 |
1250/1000 |
|
Rated limiting short-circuit current |
kA |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
|
Mechanical life |
time |
15000 |
12000 |
12000 |
12000 |
3000 |
3000 |
1000 |
1000 |
|
Electrical life |
time |
1000 |
300 |
300 |
300 |
200 |
150 |
100 |
100 |
|
Fuse size |
|
00 |
00 |
1 |
2 |
3 |
3 |
RSO(RS3)-1250 |
4 |
|
Operating torque |
Nm |
7.5 |
16 |
16 |
16 |
30 |
30 |
38 |
38 |
|
Agreed heating current of auxiliary contact Ith 400V、AC-15A |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
HH15(QSA)-□/□□
|
Specifications |
QSA- 125 |
QSA- 160 |
QSA- 250 |
QSA- 400 |
QSA- 630 |
QSA- 800 |
QSA- 1000 |
QSA- 1250 |
|
|
Number of main poles |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
3,3N,4 |
|
|
Rated insulation voltage Ui |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rated impulse withstand voltage Uimp |
kV |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Rated working voltage Ue |
V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
415/690V |
|
Agreed heating current |
A |
125 |
160 |
250 |
400 |
630 |
800 |
1000 |
1250 |
|
Rated working current |
A |
125/100 |
160/100 |
250/200 |
400/315 |
630/500 |
800/500 |
1000/800 |
1250/1000 |
|
Rated limiting short-circuit current |
kA |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
100/50 |
|
Mechanical life |
time |
15000 |
12000 |
12000 |
12000 |
3000 |
3000 |
1000 |
1000 |
|
Electrical life |
time |
1000 |
300 |
300 |
300 |
200 |
150 |
100 |
100 |
|
Fuse size |
|
00 |
00 |
1 |
2 |
3 |
3 |
RSO(RS3)-1250 |
4 |
|
Operating torque |
Nm |
7.5 |
16 |
16 |
16 |
30 |
30 |
38 |
38 |
|
Agreed heating current of auxiliary contact Ith 400V、AC-15A |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Ordering instructions
The ordering unit must indicate the form and characteristics of the switch, voltage level, current level, number of poles, operation mode and quantity, etc. for special orders, please consult our technical department Disconnector fuse Disconnector fuse.
For example:
HH15 (QSA) -125/3 400V fuse current 100A 10 sets
HH15 (QA) -200/3 380V 10 sets
HH15 (QP) -2000/32 380V 10 sets
