Overview

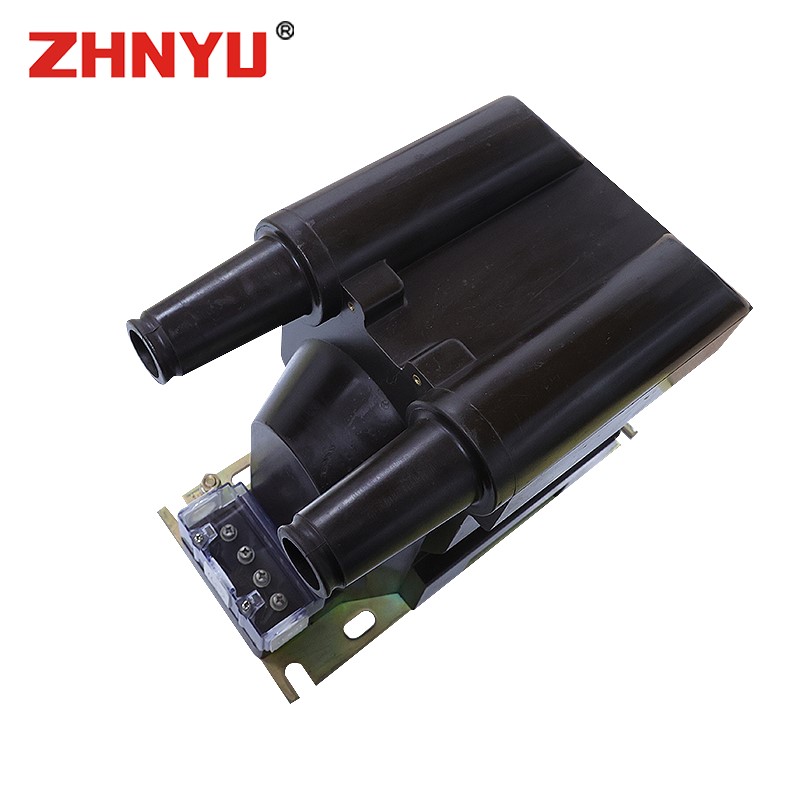

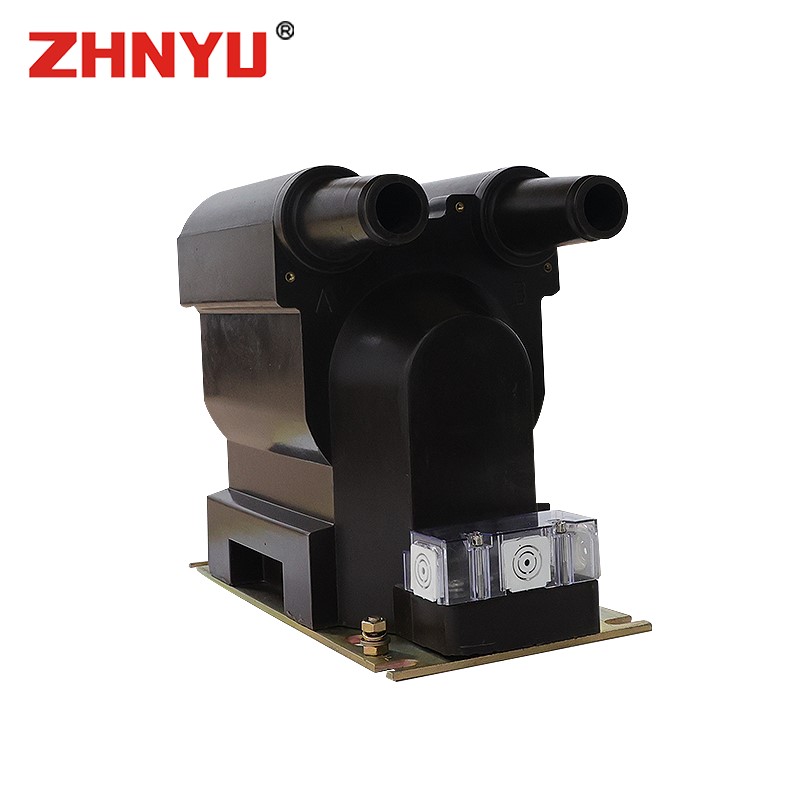

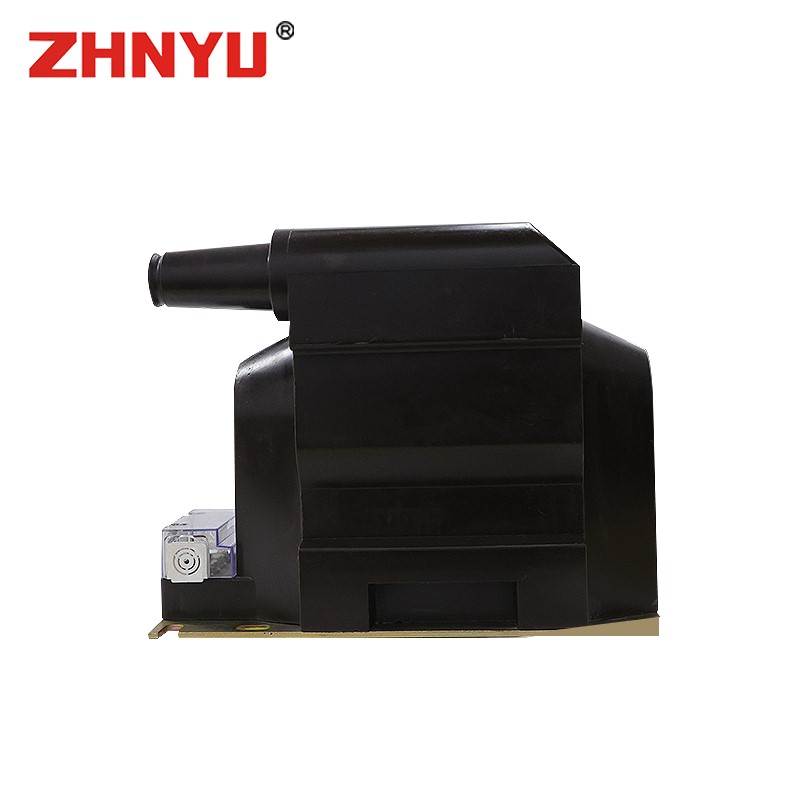

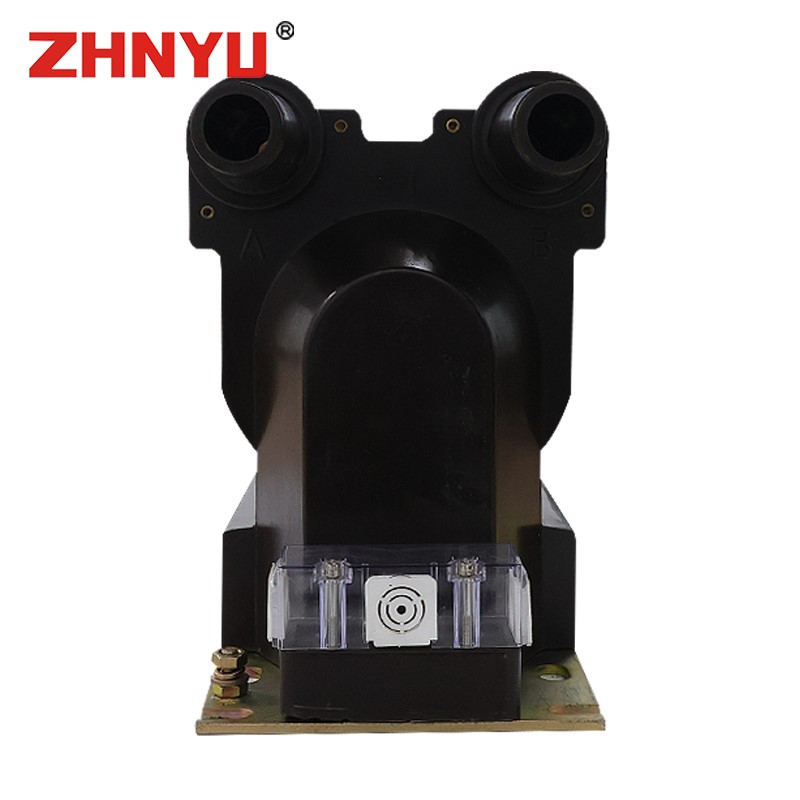

This voltage transformer features a fully enclosed epoxy resin vacuum-cast structure, designed for voltage and energy measurement in power lines and related equipment with rated voltage of 10kV and rated frequency of 50Hz or 60Hz. Equipped with fuses specifically matched to the transformer's short-circuit withstand capacity, the product offers high load capacity and simplified installation. It is widely applicable to various American-style compact substations and switchgear cabinets.
Operation Conditions
Power factor of load: cOs φ=0.8(1agging)
Rated secondary current: 5A or 1A
Rated frequency: 50 or 60Hz
Pollution level: level ll
Altitude: <1000 meter
Produet standard: GB/T20840.1,GB/T20840.2.

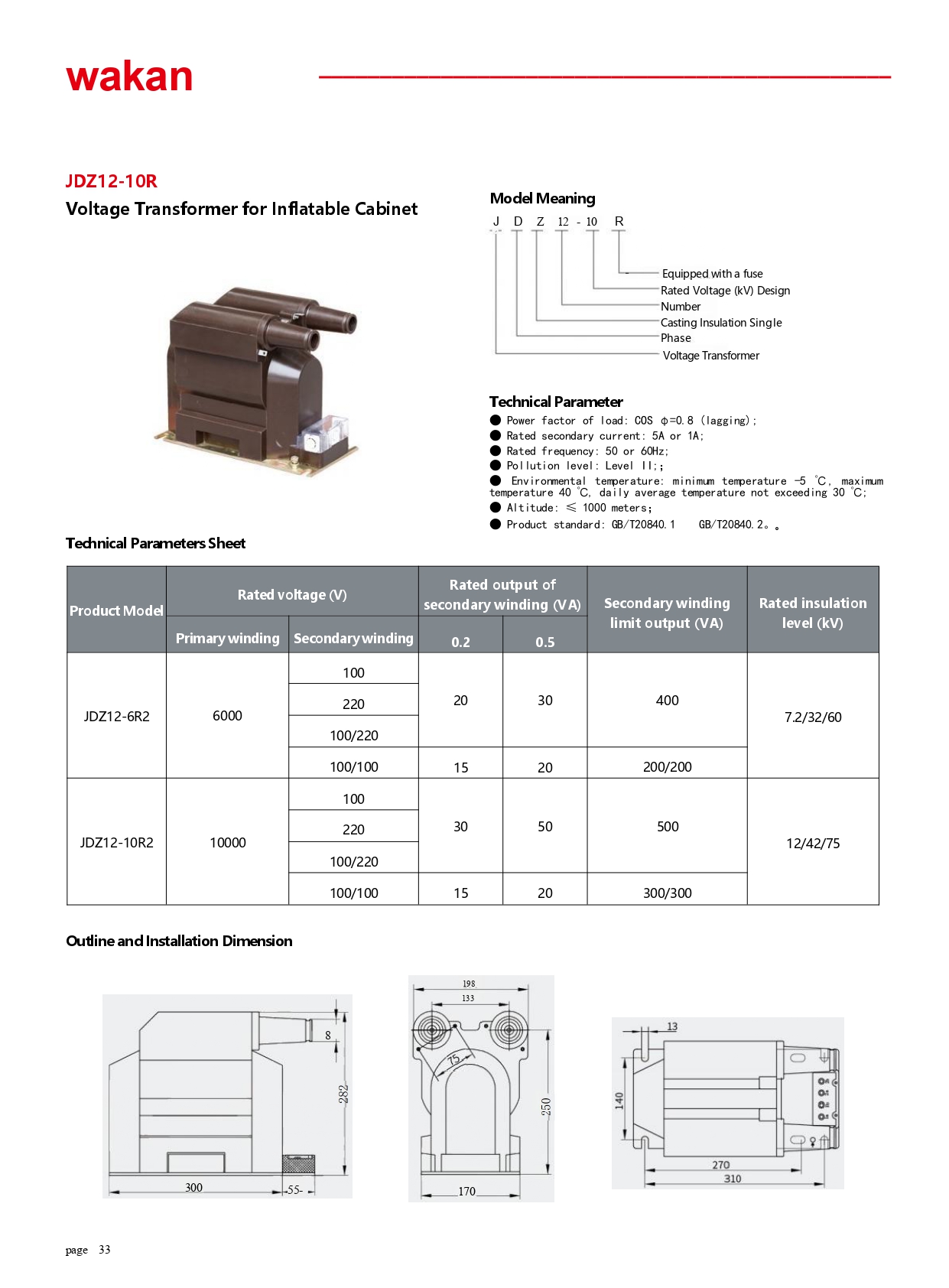

Main Technical parameter
