Overview

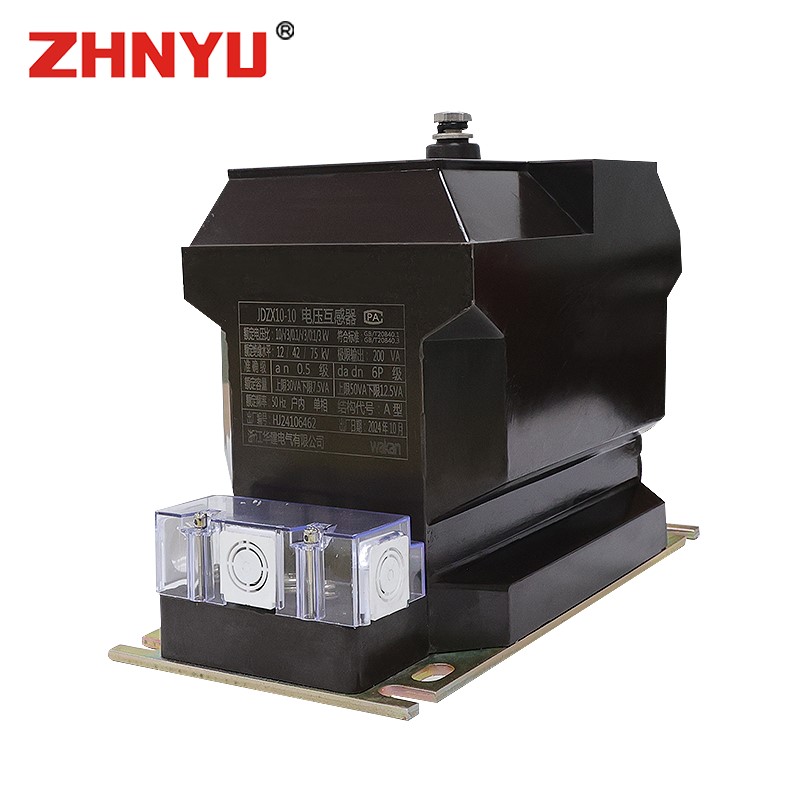

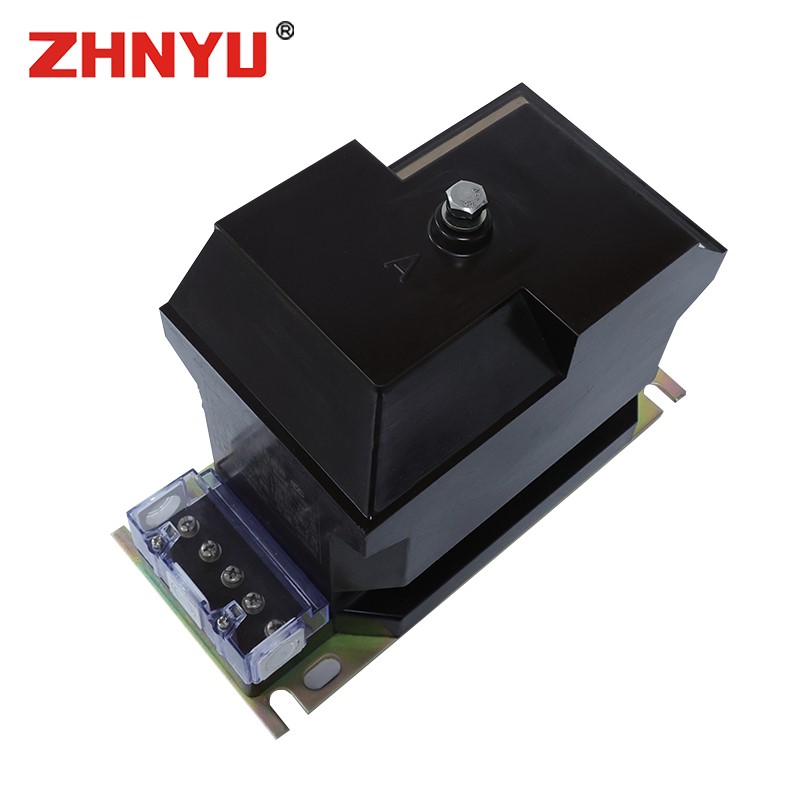

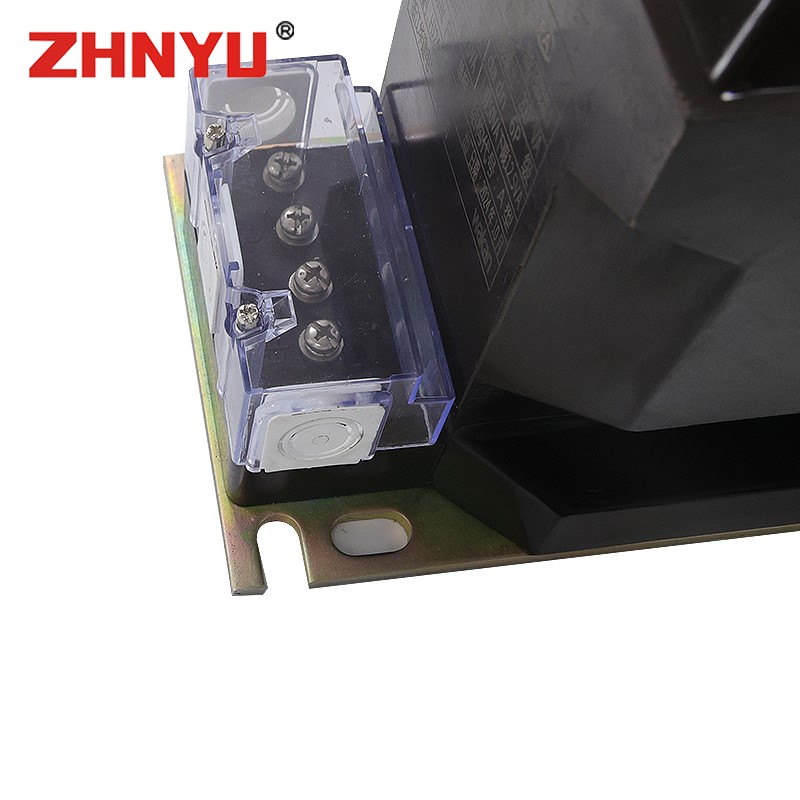

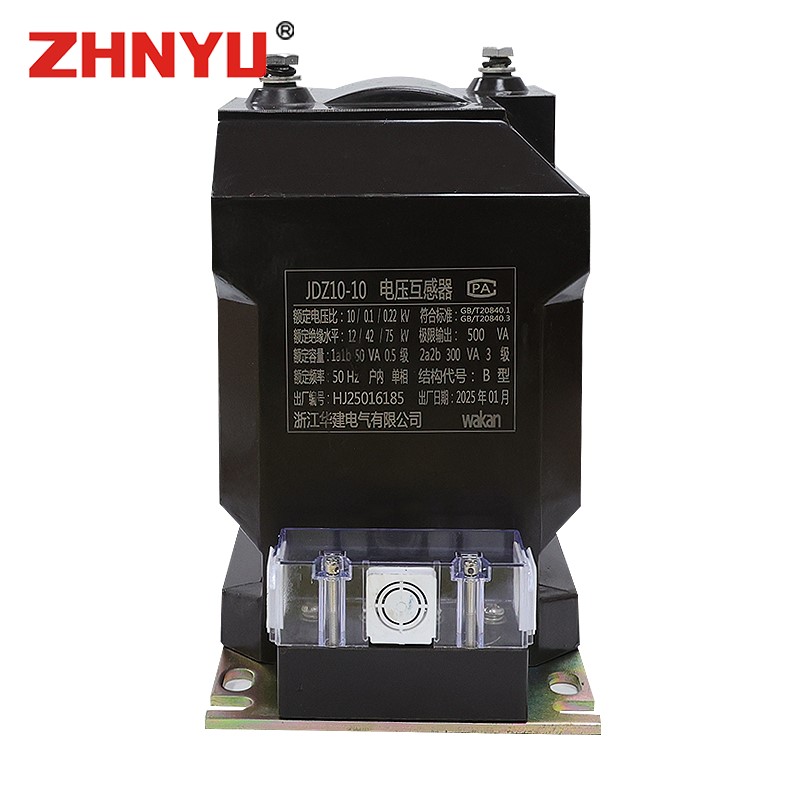

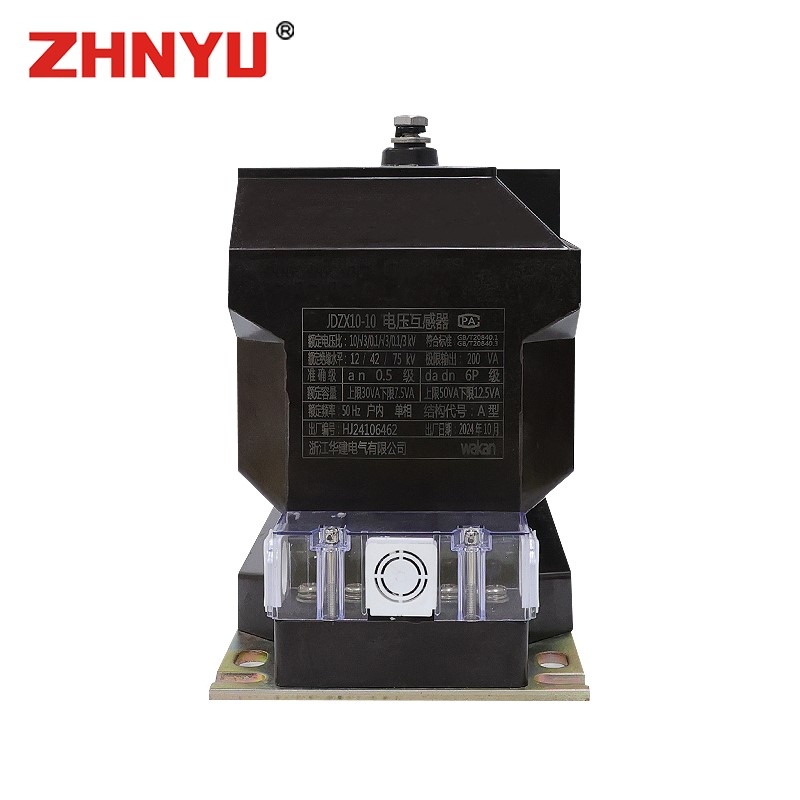

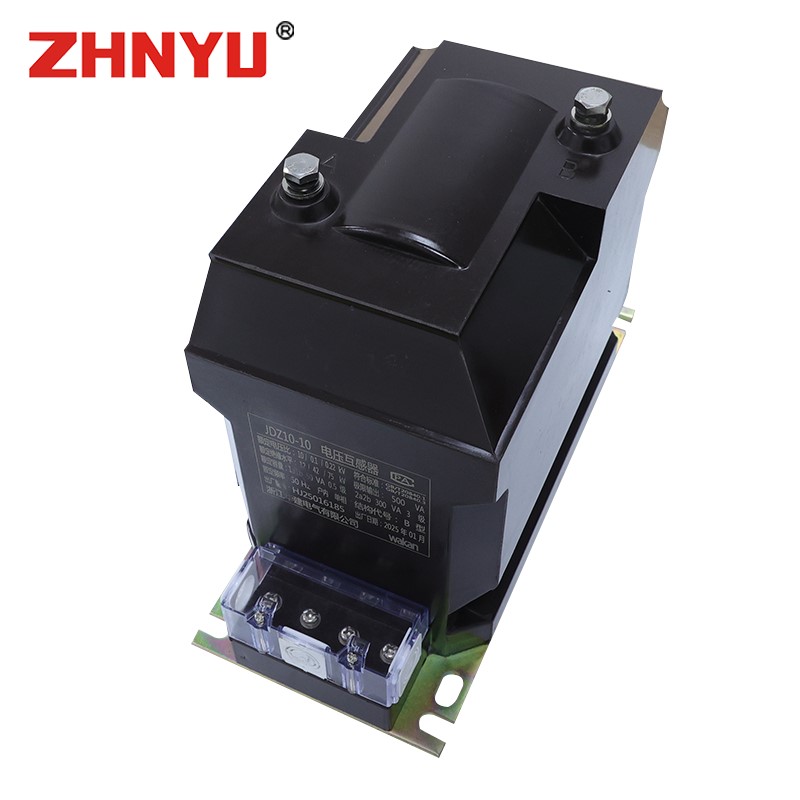

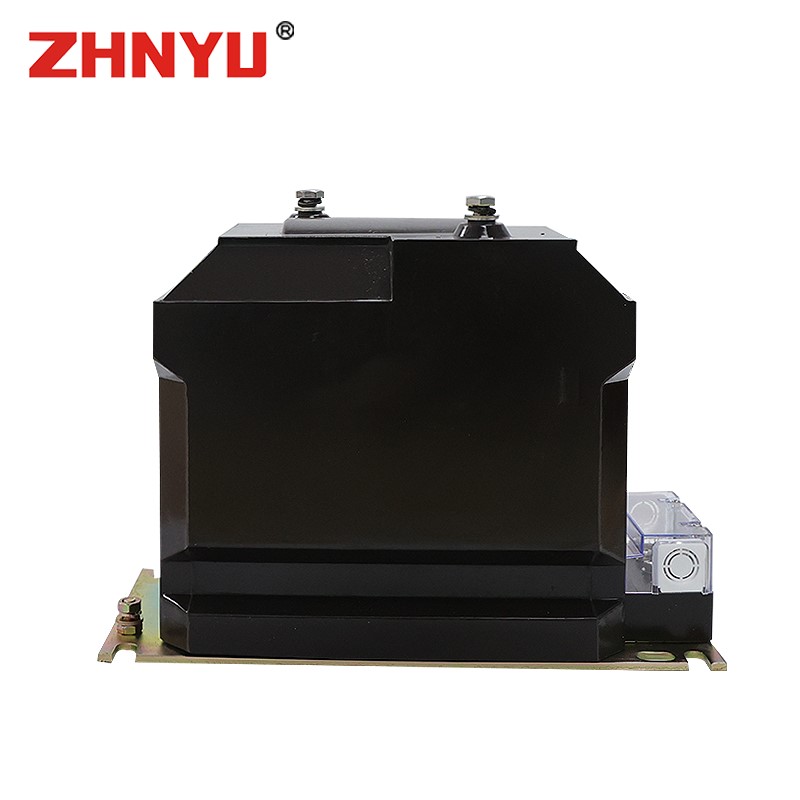

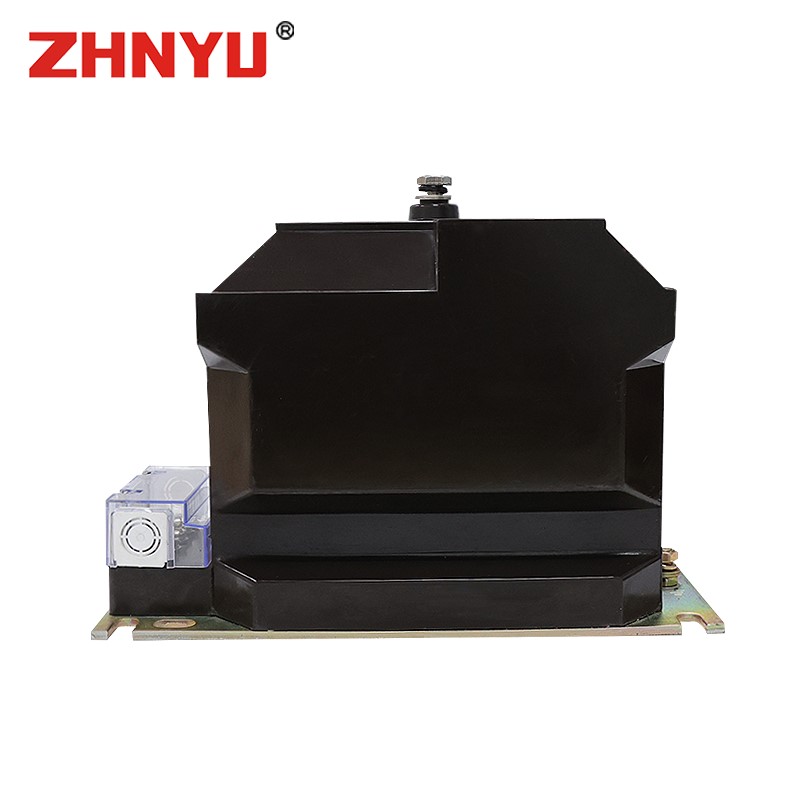

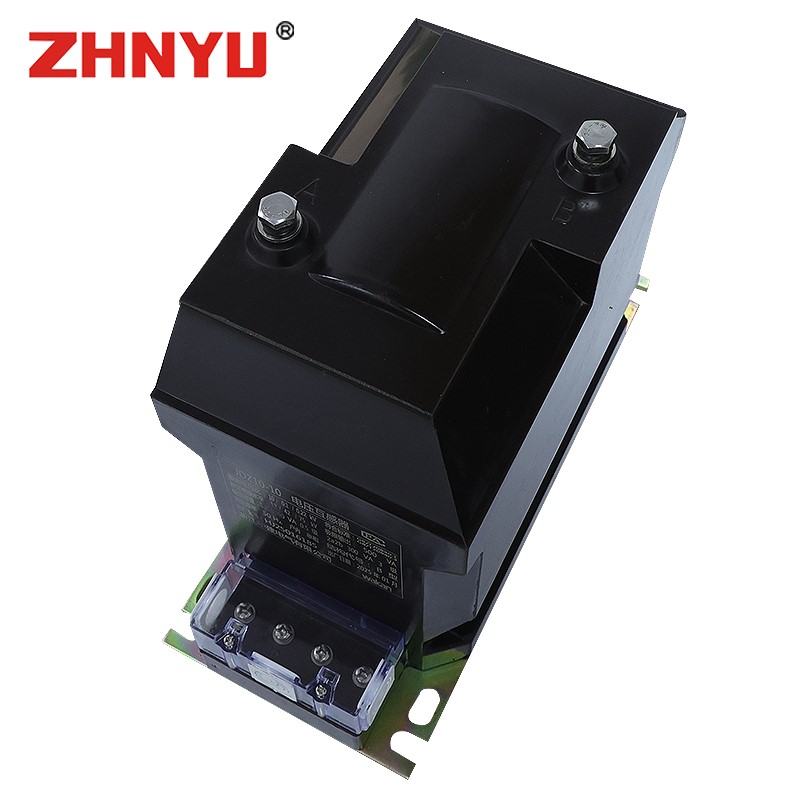

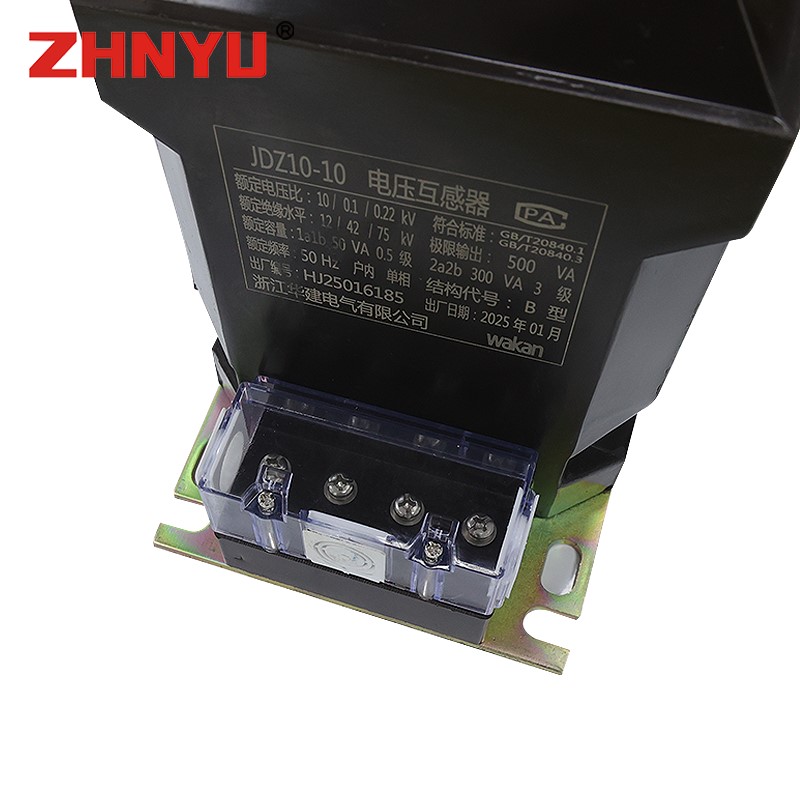

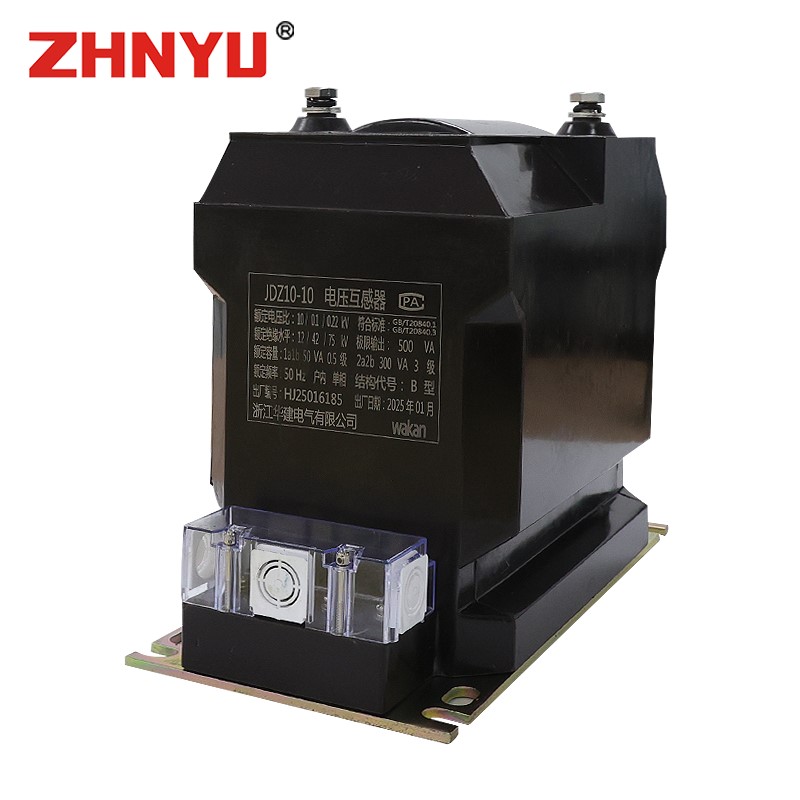

This type of mutual inductor features a pillar-type structure, fully encapsulated with epoxy resin casting, offering resistance to pollution and humidity, and is suitable for use in tropical regions. The mutual inductor requires no special maintenance, only periodic removal of surface contaminants. Due to its epoxy resin fully enclosed encapsulation, it boasts compact dimensions and lightweight design, allowing installation in any position or orientation. A terminal box is mounted at the secondary wiring terminals. The terminal box includes pre-molded openings on both the front and side panels (easily accessible by hand) that align with the wiring terminals to facilitate secure and reliable cable connections.
Operation Conditions
Power factor of load: cOs φ=0.8(1agging)
Rated secondary current: 5A or 1A
Rated frequency: 50 or 60Hz
Pollution level: level ll
Altitude: <1500 meter
Produet standard: GB/T20840.1,GB/T20840.2.

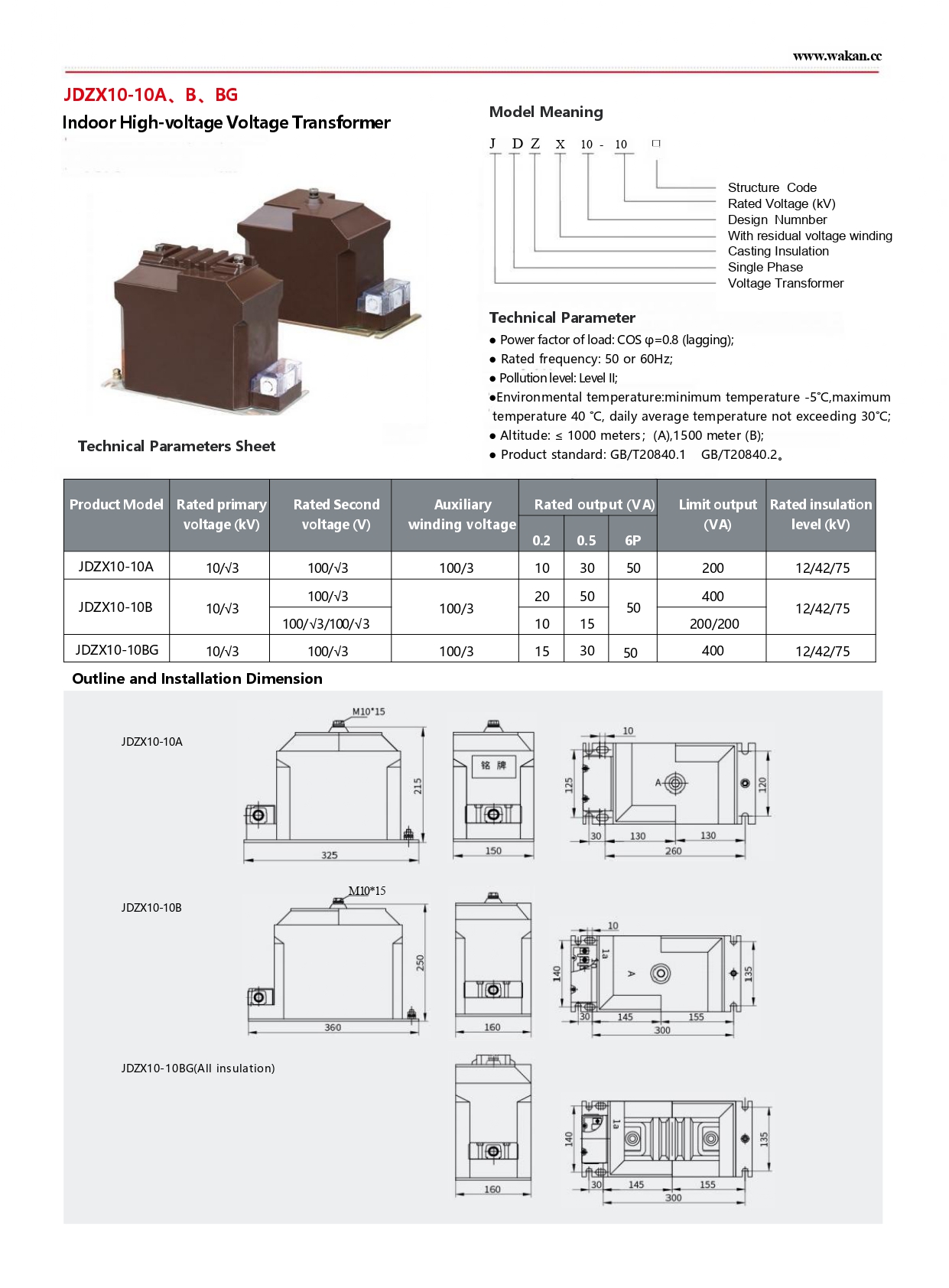

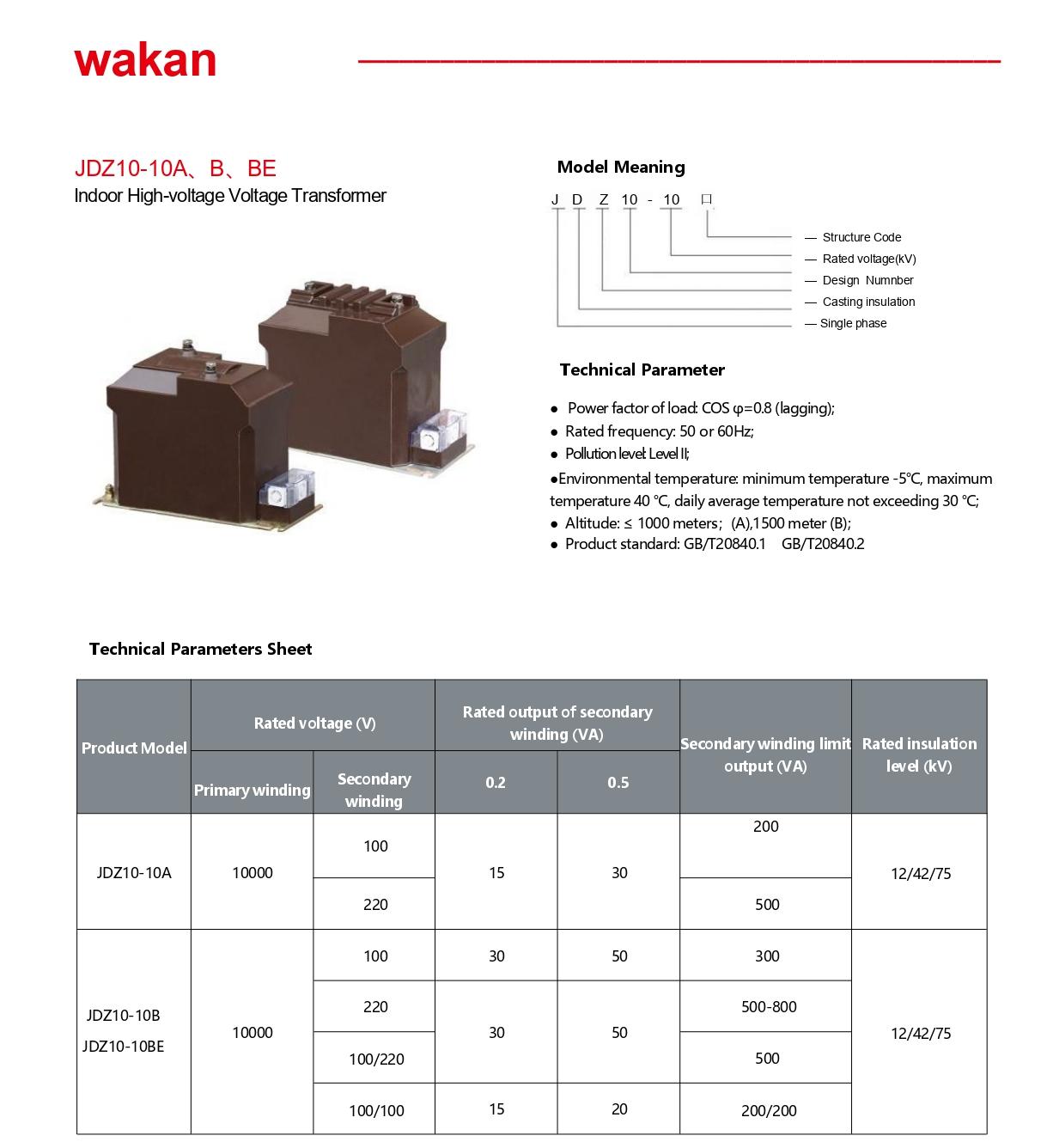

Products Description
