Overview

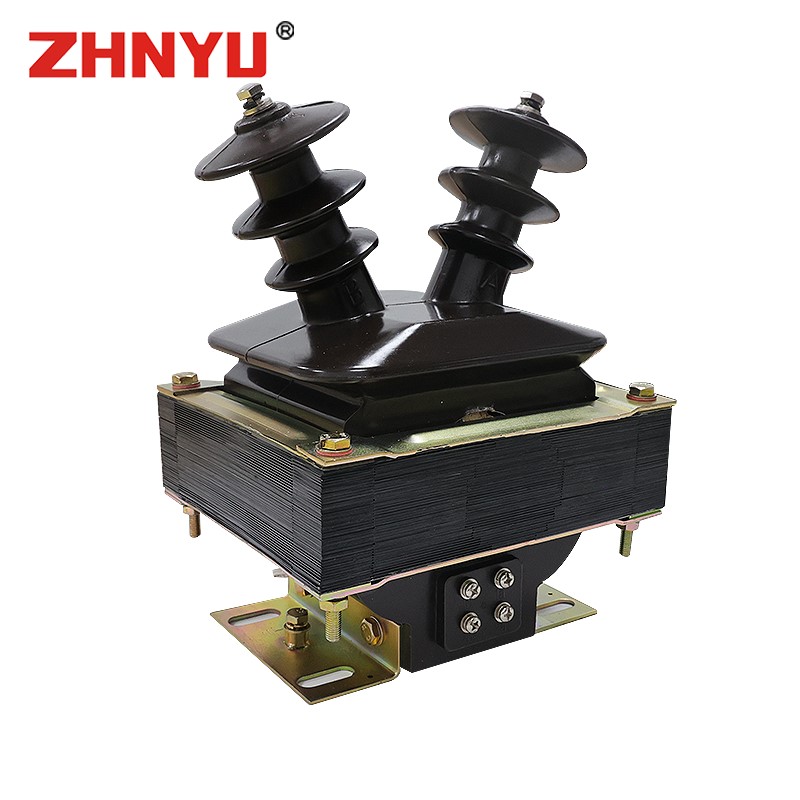

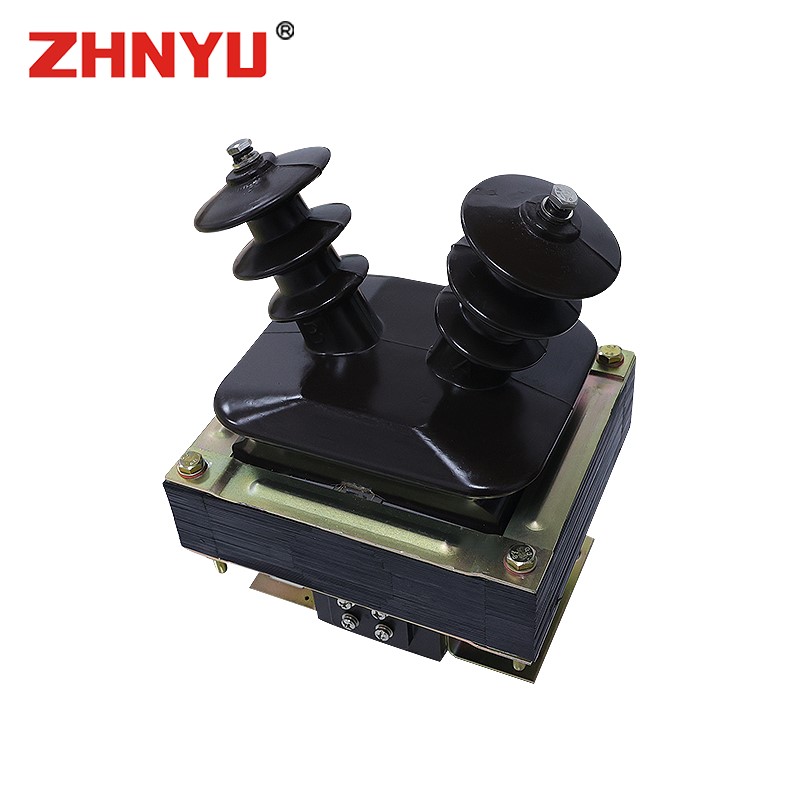

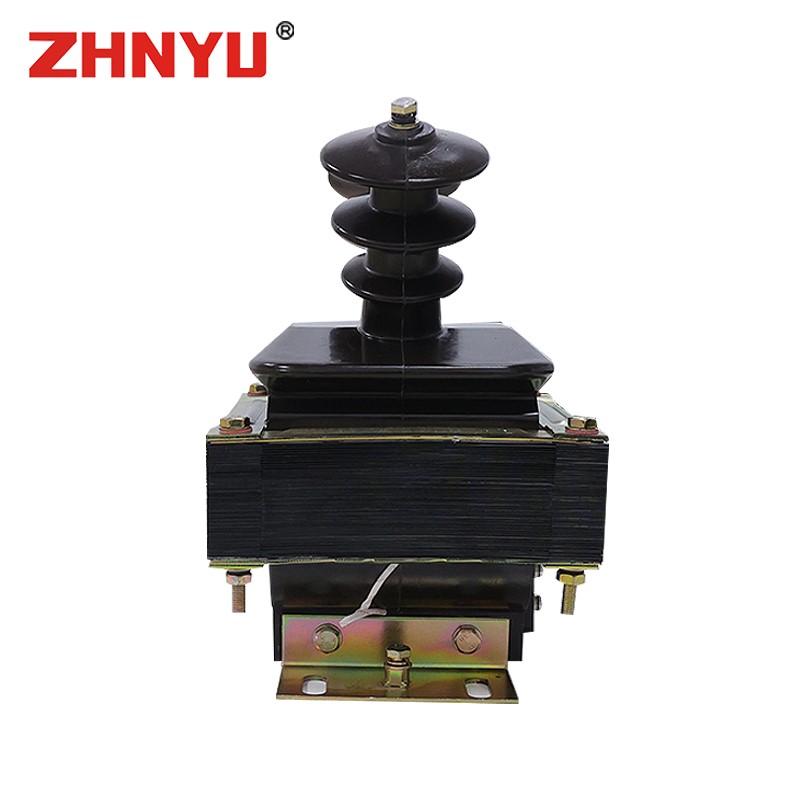

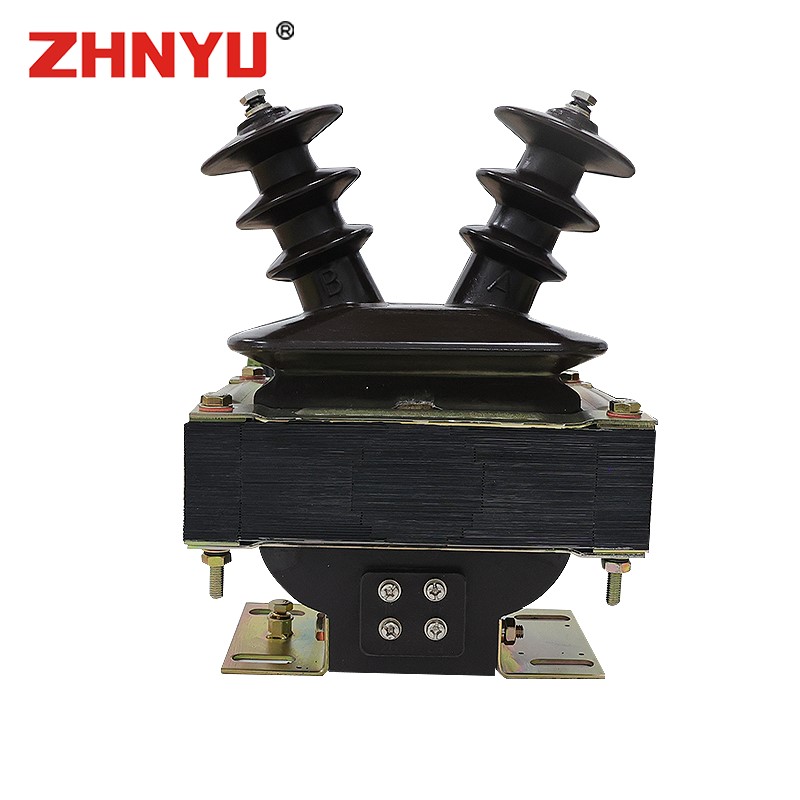

This series of mutual inductors adopts a semi-enclosed epoxy resin casting structure. The core is constructed from stacked and assembled high-quality silicon steel laminations. The casting body incorporates primary and secondary coils arranged in a cylindrical concentric configuration, along with a residual winding (if applicable). The product base is equipped with mounting brackets for secure installation and fixation.

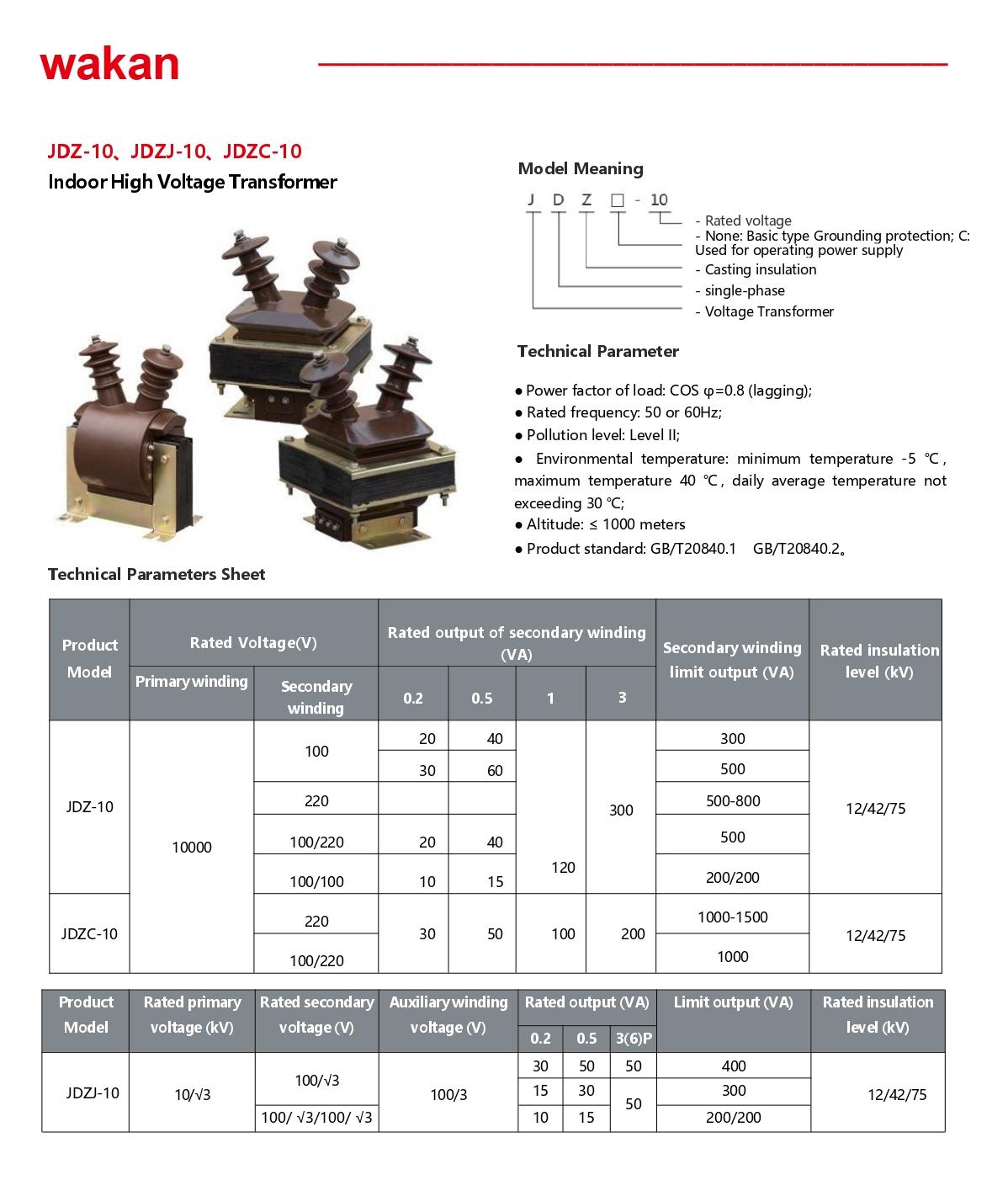

Operation Conditions
Power factor of load :cOs φ=0.8(1agging)
Rated secondary current :5A or 1A
Rated frequency :50 or 60Hz
Pollution level: level ll
Altitude: <1000 meter
Produet standard: GB/T20840.1,GB/T20840.2.
Products Description
