Application of NT00 NT1 NT2 NT3 HRC fuse links:

This series fuse is suitable for AC 50Hz,rated voltage to 1140V, rated current to 1250A.lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL); it also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). he rated breaking capability for this series fuse is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.

Product model	size	Rated voltage V	Rated current A	Rated sectioning capacity KA	Breaking range and usage category	Rated dissipation power W	Single piece weight kg	Boxed/boxed several pieces	Box weight kg
RT16-000 (NT000)	000	AC 690 AC 500	2	50KA(AC 690V) 120KA(AC 500V)	gG	1.5	0.18	3/36	20
			4			1.6
			6			1.7
			8			2
			10			2.3
			16			2.4
			20			2.5
			25			3.3
			32			3.9
			40			5
			50			5.5
			63			6.5
			80			7
		AC 500	100			8.5

NT Low Voltage Fuse NT00

Product model	size	Rated voltage V	Rated current A	Rated sectioning capacity KA	Breaking range and usage category	Rated dissipation power W	Single piece weight kg	Boxed/boxed several pieces	Box weight kg
RT16-00 (NT00)	00	AC 690 AC 500 DC 440	2	50KA(AC 690V) 120KA(AC 500V) 100KA(DC 440V)	gG	1.5	0.18	3/36	20
			4			1.6
			6			1.7
			8			2
			10			2.3
			16			2.4
			20			2.5
			25			3.3
			32			3.9
			40			5
			50			5.5
			63			6.5
			80			7
			100			8.5
			125			10
			160			11

NT Low Voltage Fuse NT00

Product model	size	Rated voltage V	Rated current A	Rated sectioning capacity KA	Breaking range and usage category	Rated dissipation power W	Single piece weight kg	Boxed/boxed several pieces	Box weight kg
RT16-1(NT1)	1	AC 690 AC 500 DC 440	40	50KA(AC 690V) 120KA(AC 500V) 100KA(DC 440V)	gG	5.5	0.4	3/18	23
			50			6.5
			63			7.5
			80			8
			100			10
			125			11
			160			13
			200			17
			225			18.5
			250			20

NT Low Voltage Fuse NT00

Product model	size	Rated voltage V	Rated current A	Rated sectioning capacity KA	Breaking range and usage category	Rated dissipation power W	Single piece weight kg	Boxed/boxed several pieces	Box weight kg

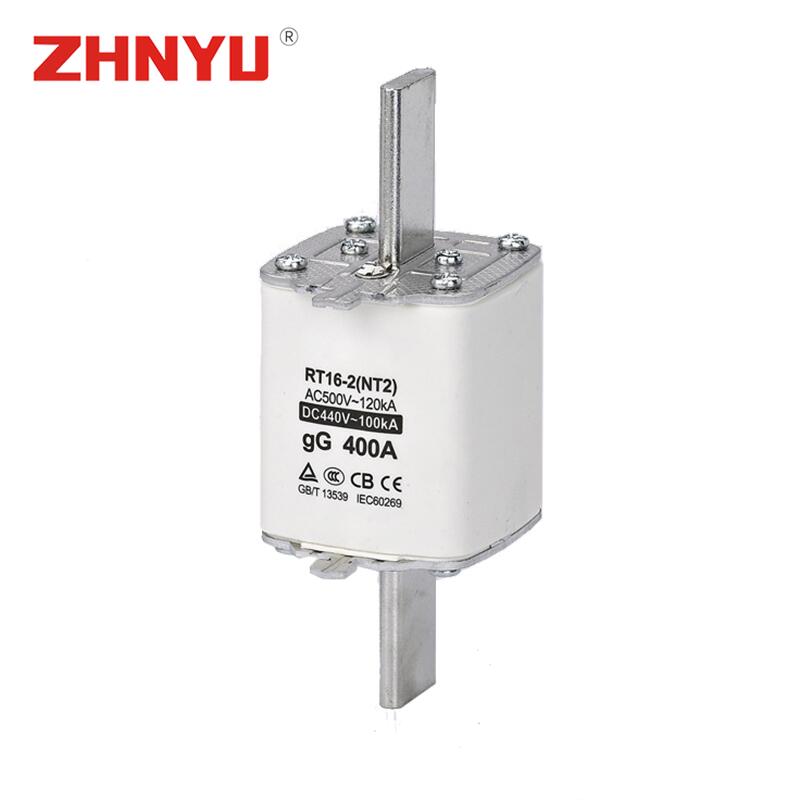

RT16-2(NT2)	2	AC 690 AC 500 DC 440	80	50KA(AC 690V) 120KA(AC 500V) 100KA(DC 440V)	gG	9	0.6	1/36	23
			100			10.5
			125			12
			160			14
			200			17.5
			250			20
			315			26
			350			28
			400			32

NT Low Voltage Fuse NT00

Product model	size	Rated voltage V	Rated current A	Rated sectioning capacity KA	Breaking range and usage category	Rated dissipation power W	Single piece weight kg	Boxed/boxed several pieces	Box weight kg
RT16-3(NT3)	3	AC 690 AC 500 DC 440	315	50KA(AC 690V) 120KA(AC 500V) 100KA(DC 440V)	gG	24	0.8	1/24	21
			400			32
			500			40
			630			42
