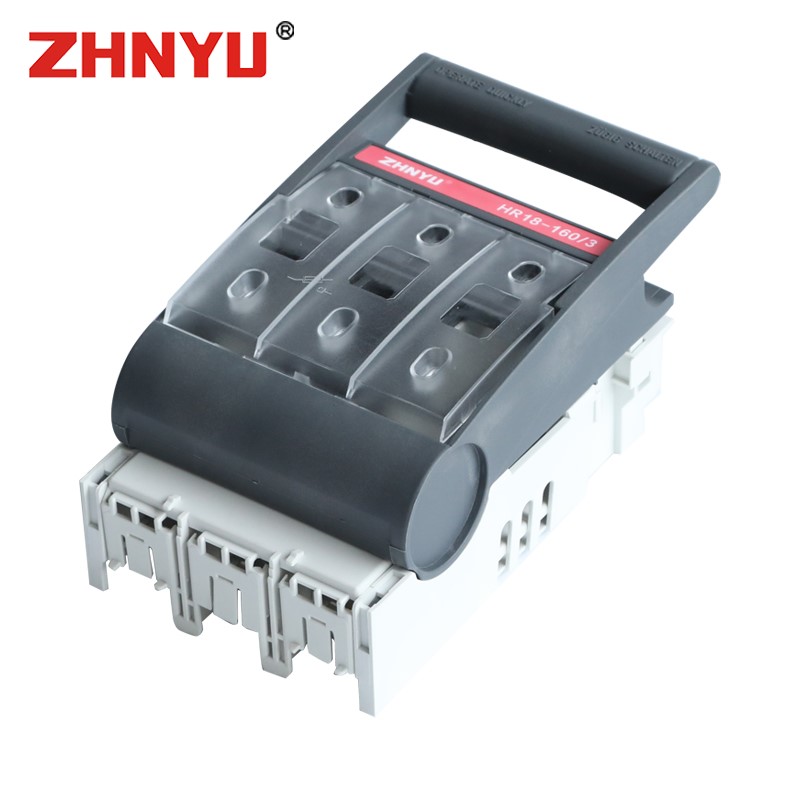

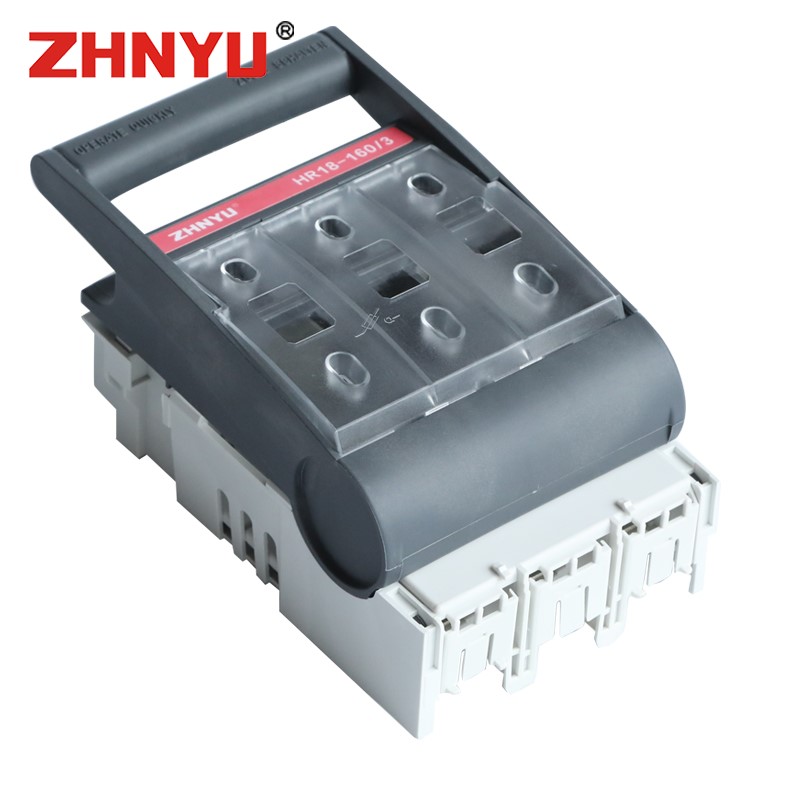

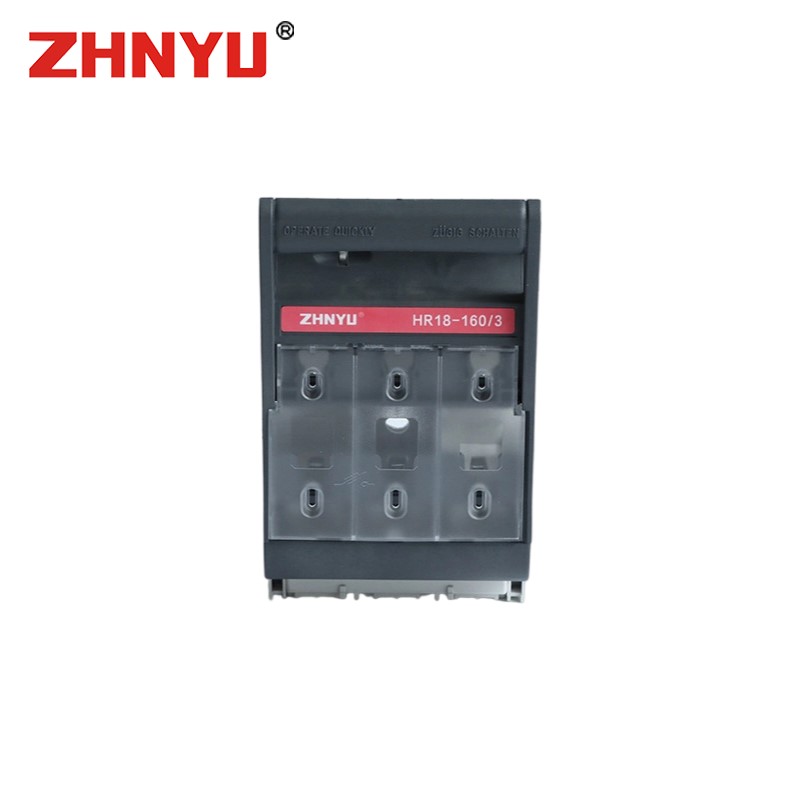

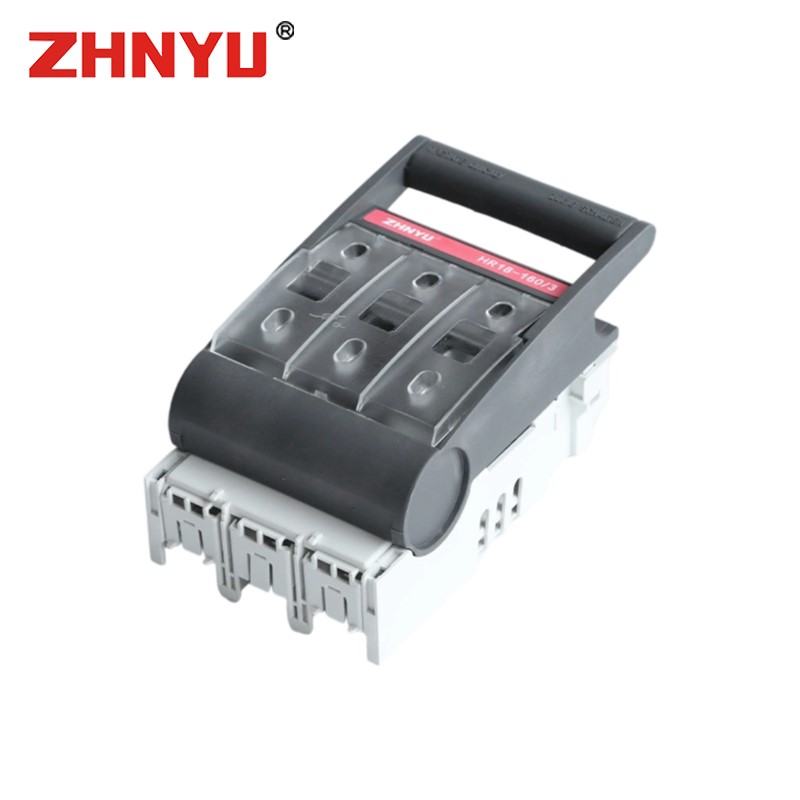

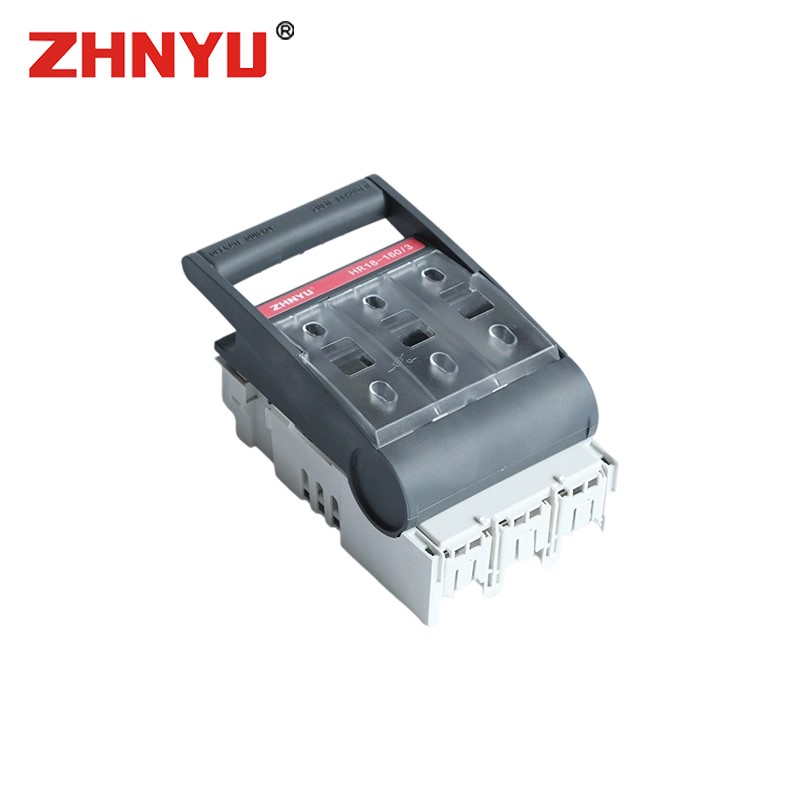

Fuse switch disconnector HR18-160-3

HR18 series Low voltage isolator switch is applicable to high short circuit current circuit with AC 50 (60) hz, rated operating voltage up to 660 V and current up to 1600A. It have upper and lower end input and output structure. Lead in equipment with knife-edge and arc extinguishing equipment, and also can be operated with charge. It is used as power switch, disconnect and emergency switch, and to protect current.

The interrupteurs-sectionneurs-fusibles3 pole features a compact design for compact fuses of NH 00 bone 160A-800A (Width = 21mm). It to greenhouses 1.5 - 35 millimeters integrated modern for cables, integrated IP 20 frames cable and sealing sealing. Accessories optional include breaking top for DIN rail support, front frame for appliances, and switches auxiliary micro.

The interrupteurs-sectionneurs-fusiblesHR18 are suitable for use in industry to protect devices and cables; they must be staffed fuse knives and can be opened in charge.

DEscription Visual window Disconnector Switch

HR18 series Low voltage isolator switch is applicable to high short circuit current circuit with AC 50 (60) hz, rated operating voltage up to 660 V and current up to 1600A. It have upper and lower end input and output structure. Lead in equipment with knife-edge and arc extinguishing equipment, and also can be operated with charge. It is used as power switch, disconnect and emergency switch, and to protect current.

Model

HR18-160A

HR18-250A

HR18-400A

HR18-630A

Fuse

NT00

NT1

NT2

NT3

Nominal operating voltage EU V

400

500

690

400

500

690

400

500

690

400

500

690

Current assignée running

125

160

125



250

200



400

315



630

500

Thermal Current assigné, with Fuse Ith A

160

250

400

630

Voltage isolation assignée UI V

1000

Voltage withstand assignée shock Uimp V

8000

Current assigné shorting in fuse protected kA ms

50

Power cut assigné and closure

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

Frequency assigné Hz

50/60

50/60

50/60

50/60

Power dissipated/pole Im, with current assigné, without fuse

12 W

23 W

34 W

48 W

Electric Endurance

200

200

200

200

Mechanical Endurance

1400

1400

800

800

Degree of protection

Open

IP20

IP20

IP20

IP20

Closed

IP30

IP30

IP30

IP30

Packaging









Mass without accessory, weight (kg)









Note: Our Products update permanently. The technical parameter is for reference only. S'il you pla & icirc;t please refer to our actual product. And contact me!

Specification Visual window Disconnector Switch

Fuse switch disconnector HR18

Fuse switch disconnector HR18

Fuse switch disconnector HR18

Mounting System Visual window Disconnector Switch
=> System mounting plate
=> Busbar system

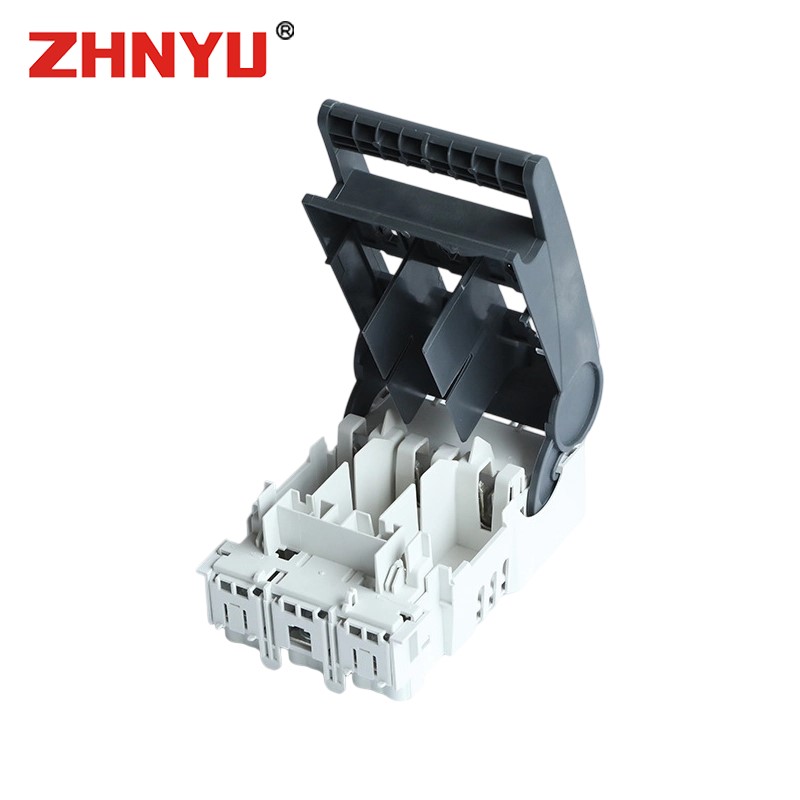

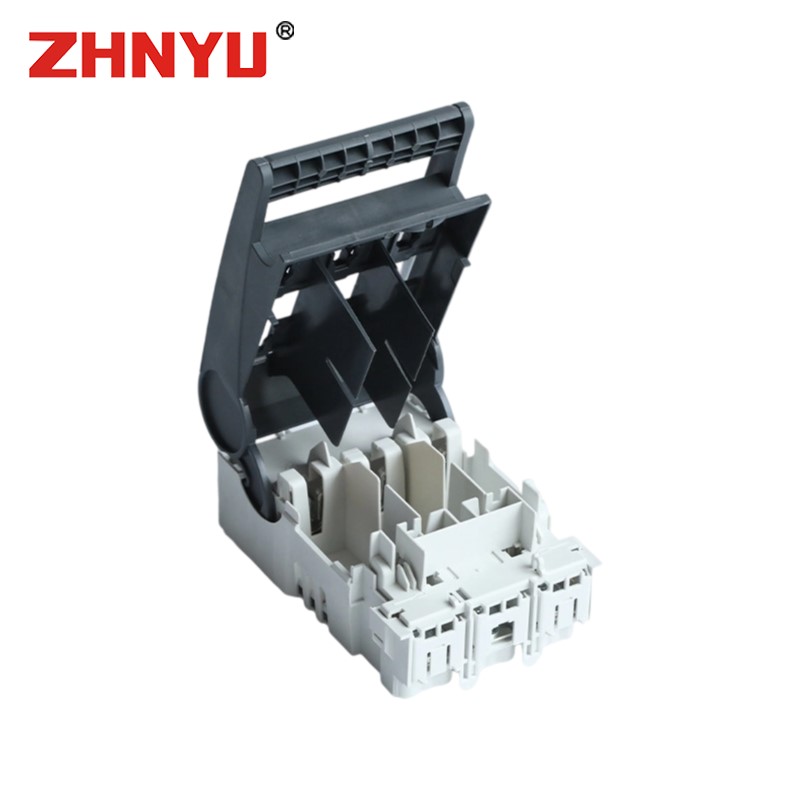

Details of window visual disconnect switch

Fuse switch disconnector HR18

Fuse switch disconnector HR18



Fuse switch disconnector HR18

Fuse switch disconnector HR18

Fuse switch disconnector HR18

Fuse switch disconnector HR18

Fuse switch disconnector HR18
