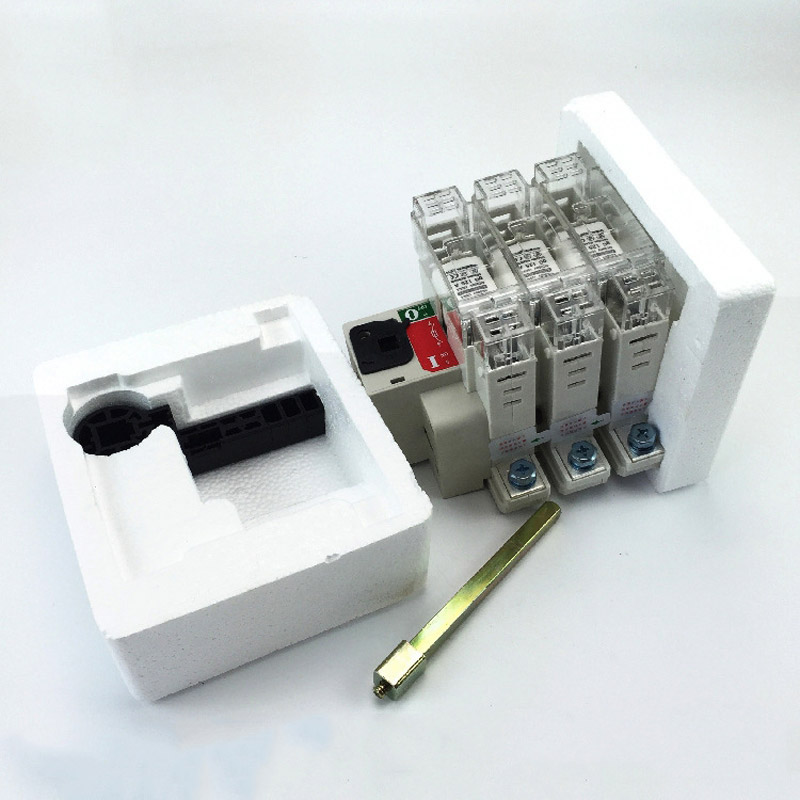

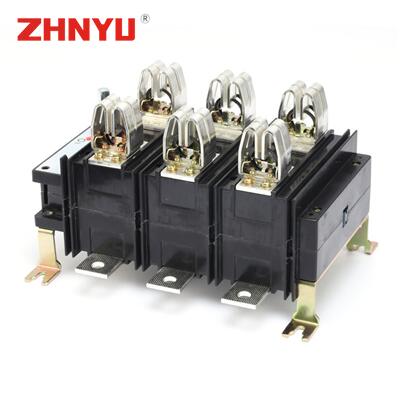

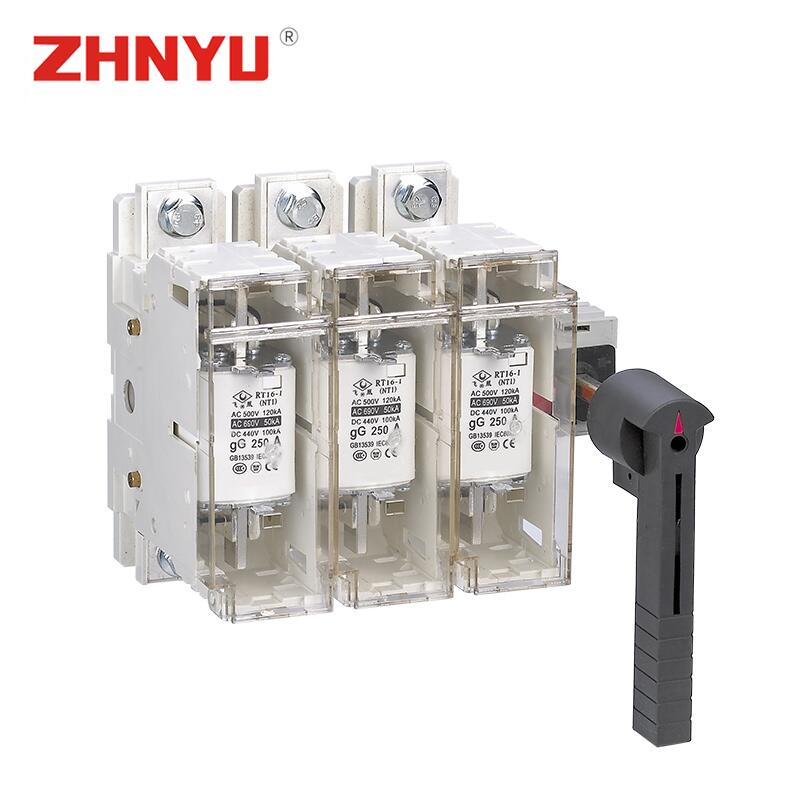

The Disconnector Fuse Group is the ideal solution for high-current connections and disconnections. Its modular design makes it easy to assemble according to your needs, while the integral structural design ensures stability. The spring energy storage mechanism allows for quick and easy connections and disconnections, even at high speeds.

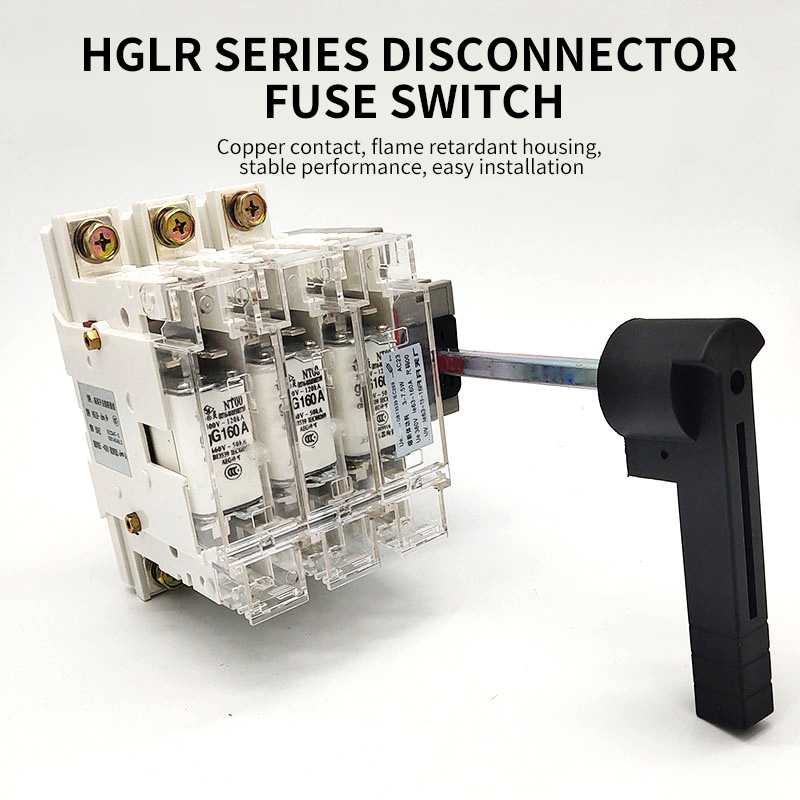

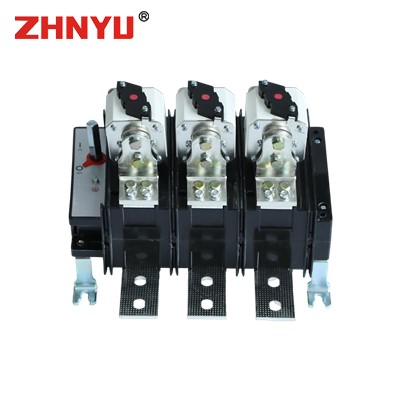

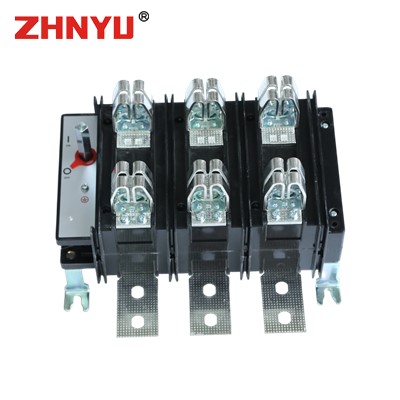

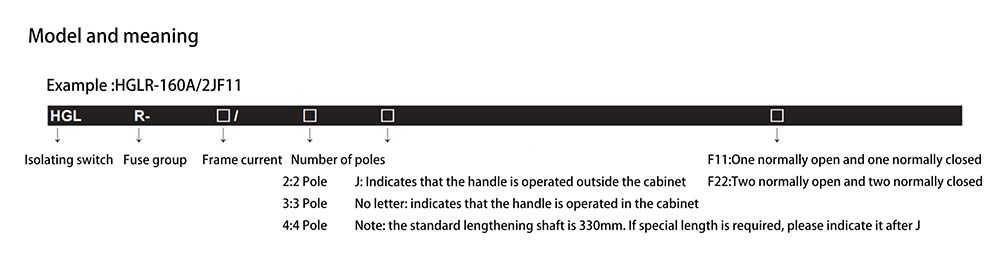

Isolating switch fuse group
Electrical and mechanical properties of HGLR-63~630 disconnector fuse group
|
Electrical parameters |
Agreed heating current Ith (A) |
63 |
160 |
250 |
400 |
630 |
||
|
|
Fuse size |
00C |
00 |
1 |
2 |
3 |
||
|
|
Rated insulation voltage Ui |
800 |
800 |
800 |
800 |
800 |
||
|
|
Dielectric strength (V) |
2000 |
2000 |
2000 |
2000 |
2000 |
||
|
|
Rated impulse withstand voltage Uimp kV |
8 |
8 |
8 |
8 |
8 |
||
|
|
Rated working current Ie (A) |
415V |
AC-23B |
63 |
160 |
250 |
400 |
630 |
|
|
|
690V |
AC-21B |
40 |
100 |
200 |
315 |
400 |
|
|
Limit short-circuit current（Ｉq）(ＫA) |
20 |
20 |
20 |
20 |
20 |
||
|
Making and breaking capacity (arms) |
Rated making capacity |
630 |
1600 |
2500 |
4000 |
6300 |
||
|
|
Rated breaking capacity |
504 |
1280 |
2000 |
3200 |
5040 |
||
|
Operational performance |
Mechanical life |
1700 |
1400 |
1400 |
800 |
800 |
||
|
|
Electrical life |
300 |
200 |
200 |
200 |
200 |
||
|
Weight |
3 Poles |
1 |
1.8 |
3.2 |
4.8 |
16 |
||
|
|
4 Poles |
1.,3 |
2.3 |
4.5 |
6.1 |
19 |
||

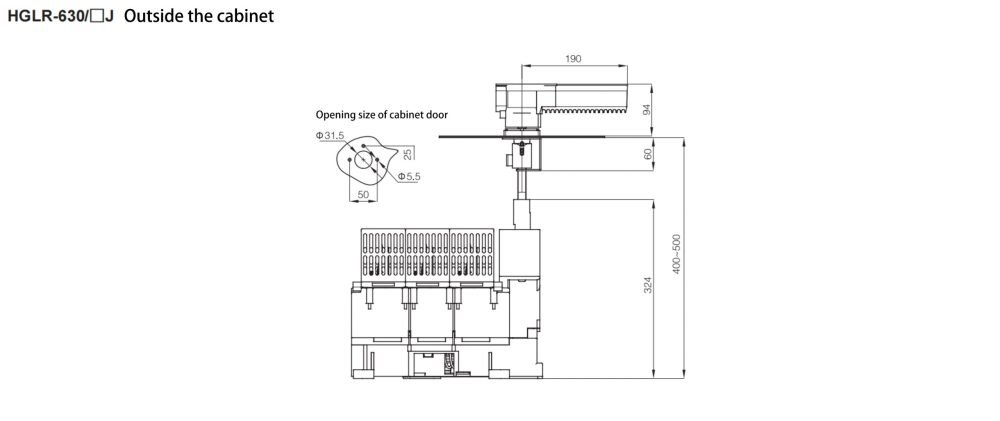

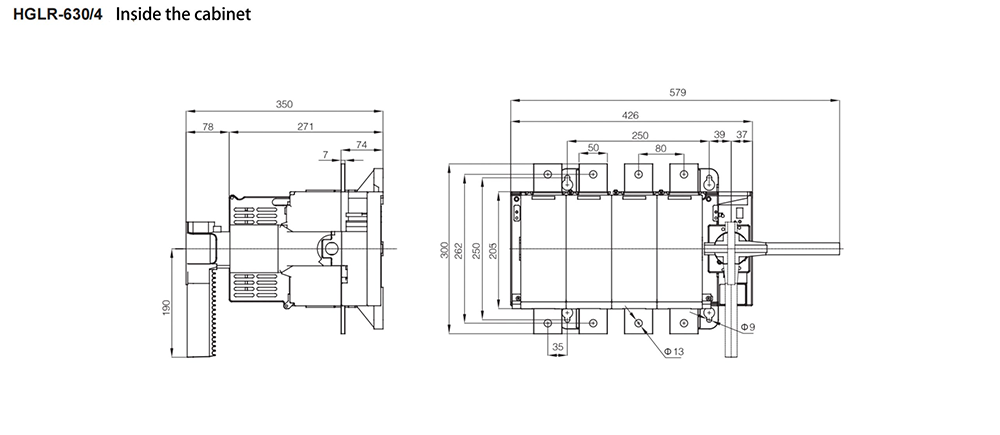

Fuse Switch Disconnector Outline and Installation Dimension (mm)
|
Specifications |
A |
B |
C |
D |
E |
F |
G |
|
HGLR-63/3 |
134 |
118 |
31 |
70 |
118 |
134 |
102 |
|
HGLR-63/4 |
166 |
118 |
31 |
70 |
118 |
134 |
102 |
Fuse Switch Disconnector
|
Specifications |
A |
B |
C |
D |
E |
H |
M |
K |
N |
P |
U |
L |
ΦX |
|
HGLR-160/3 |
165 |
162 |
192 |
118 |
127 |
108 |
67 |
90 |
141 |
36 |
115 |
5 |
8.8 |
|
HGLR-160/4 |
200 |
162 |
192 |
118 |
127 |
144 |
67 |
90 |
141 |
36 |
115 |
5 |
8.8 |
|
HGLR-250/3 |
236 |
195 |
200 |
160 |
146 |
180 |
93 |
137 |
165 |
60 |
145 |
6 |
11 |
|
HGLR-250/4 |
296 |
195 |
200 |
160 |
146 |
240 |
93 |
137 |
165 |
60 |
145 |
6 |
11 |
|
HGLR-400/3 |
281 |
205 |
200 |
170 |
149 |
198 |
124 |
137 |
175 |
66 |
145 |
6 |
11 |
|
HGLR-400/4 |
347 |
205 |
200 |
170 |
149 |
264 |
124 |
137 |
175 |
66 |
145 |
6 |
11 |

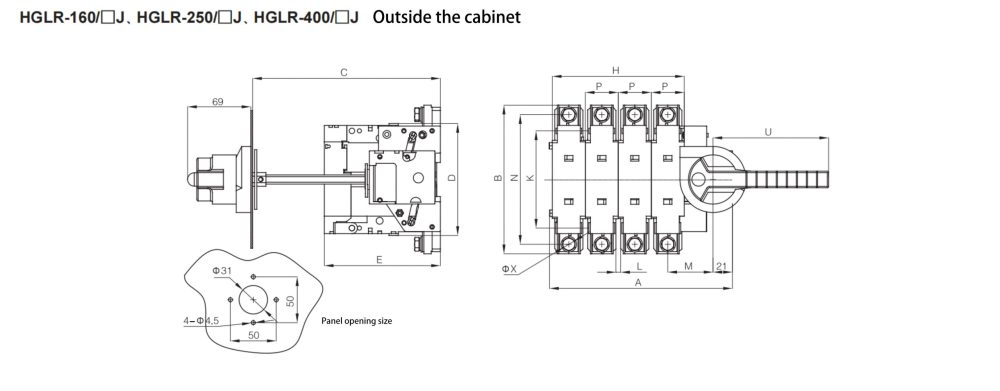

Fuse Switch Disconnector
|
Specifications |
A |
B |
C |
D |
E |
H |
M |
K |
N |
P |
U |
L |
ΦX |
|
HGLR-160/3 |
165 |
162 |
150~300 |
118 |
127 |
108 |
67 |
90 |
141 |
36 |
126 |
5 |
8.8 |
|
HGLR-160/4 |
200 |
162 |
150~300 |
118 |
127 |
144 |
67 |
90 |
141 |
36 |
126 |
5 |
8.8 |
|
HGLR-250/3 |
236 |
195 |
150~300 |
160 |
146 |
180 |
93 |
137 |
165 |
60 |
126 |
6 |
11 |
|
HGLR-250/4 |
296 |
195 |
150~300 |
160 |
146 |
240 |
93 |
137 |
165 |
60 |
126 |
6 |
11 |
|
HGLR-400/3 |
281 |
205 |
150~300 |
170 |
149 |
198 |
124 |
137 |
175 |
66 |
126 |
6 |
11 |
|
HGLR-400/4 |
347 |
205 |
150~300 |
170 |
149 |
264 |
124 |
137 |
175 |
66 |
126 |
6 |
11 |
