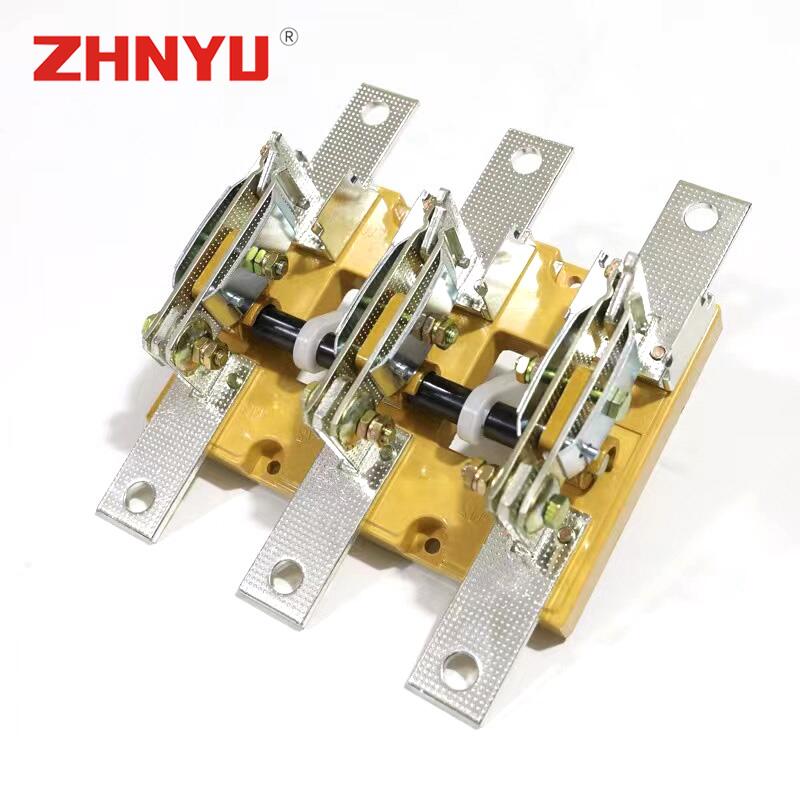

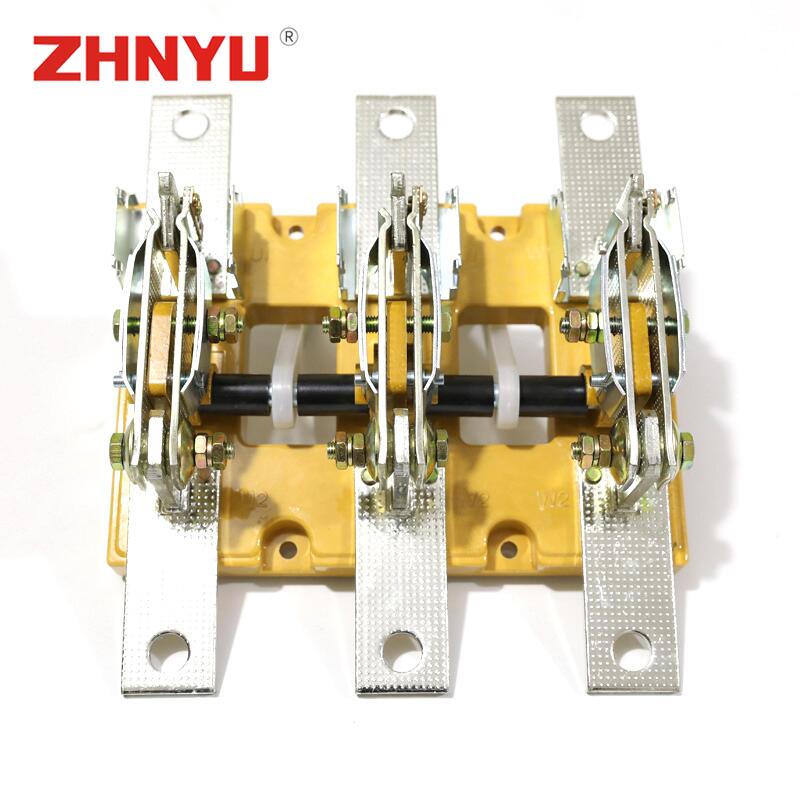

Knife switch HD13BX-600-31,продукция,Zhejiang Zhengyu Electrical Appliances

Working Condition:
The ambient temperature : +5 ° C~ +40 ° C installation location must be at an altitude of less than 2000 m.
Humidity:
When the highest temperature is +40℃, the relative humidity of the air does not exceed 50%.
Higher relative humidity can be allowed at lower temperature, such as 90% at 20℃.
Measures should be taken for occasional condensation due to ambient temperature changes.
Environment pollution rating:
The switch should be installed in a place where there is no significant shaking, shock vibration, and wind and rain.
The switch should be installed in a place where there is no explosive medium and no gas and dust that can corrode metal and destroy insulation.
The insulation material can reach flame retardant V0 grade.

Model no.

Item	Order No.	Current
1	HD13BX-200/31	200A
2	HD13BX-400/31	400A
3	HD13BX-600/31	600A
4	HD13BX-1000/31	1000A
5	HD13BX-1500/31	1500A
6	HD13BX-2000/31	2000A
7	HD13BX-1500/30	1500A
8	HD13BX-2000/30	2000A
9	HD13BX-3000/30	3000A
10	HD13BX-200/41	200A
11	HD13BX-400/41	400A
12	HD13BX-600/41	600A
13	HD13BX-1000/41	1000A
14	HD13BX-1500/41	1500A
15	HD13BX-2000/41	2000A
16	HD13BX-1500/40	1500A
17	HD13BX-2000/40	2000A
18	HD13BX-3000/40	3000A

Dimension

Knife switch HD13BX

Parameters

Thermal currentIth/A(A)	100	200	400	600	1000	1500	2000	3000
Rated currentIe(A)	400/690	400/690	400/690	400/690	400/690	400/690	400	400
Rated insulation voltage (V)	100	200	400	600	1000	1500	2000	3000
Rated voltage(V)	1000	1000	1000	1000	1000	1000	690	690
Electric endurance times(次)	10000	8000	8000	5000	5000	5000	3000	3000
1s Rated short-time withstand current(kA)	1000	1000	1000	500	500	500	300	300
Operation force(N)	10	10	15	20	25	35	40	40
Thermal currentIth/A(A)	≤300	≤300	≤400	≤400	≤450	≤450	≤450	≤450
