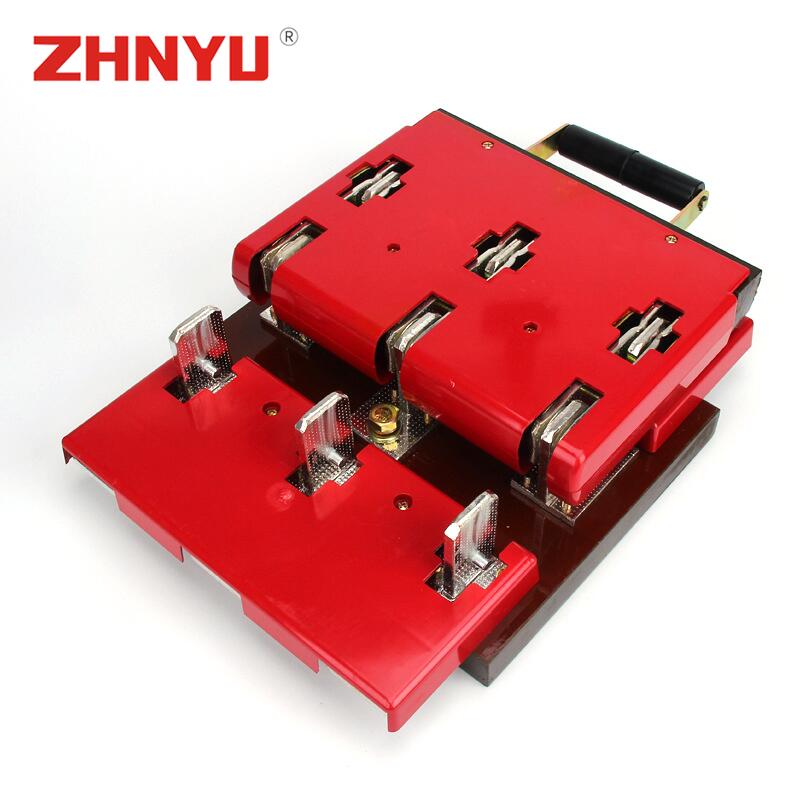

Switch Blade Knife HS series Open knife switch and knife type change-over switch Knife Blade Switch

Scope of application
Knife Blade Switch HD series and HS series open knife switches and knife shaped transfer switches (hereinafter referred to as switches) are applicable to complete sets of power distribution devices with AC 50Hz, rated voltage up to AC690V and rated current up to 3000A. They are used as infrequent manual connection and disconnection of AC circuits or as isolation switches.

The central handle type switch is mainly used in the power station, which does not cut off the circuit with current and is used as an isolating switch.Knife Blade Switch
The central lever operating mechanism switch is mainly used in the switchgear with front operation and rear maintenance, and the operating mechanism is installed in the front.Knife Blade Switch
The side and front lever operated mechanism switch is mainly used in the switch cabinet for side and front operation and front maintenance. The operating mechanism can be installed on both sides of the cabinet.Knife Blade Switch
The switch equipped with arc extinguishing chamber can cut off the current load, and other series of knife switches are only used as disconnectors.Knife Blade Switch
This product conforms to IEC60947-3 GB14048.3 standard.
Read on what is isolator switch?

Normal working and installation conditions

The ambient air temperature is not higher than +40 ℃ and not lower than -5 ℃.Knife Blade Switch
The altitude of the installation site shall not exceed 2000m.Knife Blade Switch
Humidity: when the maximum temperature is +40 ℃, the relative humidity of the air does not exceed 50%. At a lower temperature, a higher relative humidity can be allowed, such as 90% at 20 ℃. Corresponding measures should be taken for the occasional condensation due to temperature changes.Knife Blade Switch
The pollution level of the surrounding environment is level 3.Knife Blade Switch
The switch shall be installed in a place without significant shaking, shock vibration and rain and snow invasion. At the same time, the installation site shall be free of explosive dangerous media, and the media shall be free of gas and dust that are sufficient to corrode metal and damage insulation.Knife Blade Switch.

Processing mode of base plate: Machining (rubber plate, epoxy plate)
Specification and model	Overall dimension												Installation dimension				Handle opening size
	A	B	E	H	G	R	J	K	L	I	O	P	M	Φ	C	D	S	T
HS13-200/31	210	270	80	160	245~265	175	210	/	75	26	/	/	8	7	80	240	100	146
HS13-200/41	290	270	80	160	245~265	175	130	/	75	26	/	/	8	7	160	240	100	146
HS13-400/31	242	300	90	180	245~265	175	166	/	65	29	/	/	12	7	90	240	100	146
HS13-400/41	330	300	90	180	245~265	175	166	/	65	29	/	/	12	7	180	240	100	146
HS13-600/31	270	392	100	185	245~265	175	359	40	68	37	/	/	16	9	100	240	100	146
HS13-600/41	370	392	100	185	245~265	175	359	40	68	37	/	/	16	9	200	240	100	146
HS13-1000/31	330	442	120	230	245~265	230	358	50	62	23	26	26	2-12	9	120	240	100	146
HS13-1000/41	450	442	120	230	245~265	230	358	50	62	23	26	26	2-12	9	240	240	100	146
HS13-1500/31	360	484	130	255	245~265	230	384	70	73	23	35	35	4-12	9	130	260	130	170
HS13-1500/41	500	484	130	255	245~265	230	384	70	73	23	35	35	4-12	9	260	260	130	170
HS13-1500/30	360	484	130	255	245~265	230	384	70	73	23	35	35	4-12	9	130	260	130	170
HS13-1500/40	500	484	130	255	245~265	230	384	70	73	23	35	35	4-12	9	260	260	130	170
HS13-2000/30	500	474	180	230	245~265	280	358	97	62	44	40	55	4-12	9	180	260	130	170
HS13-2000/40	680	474	180	230	245~265	280	358	97	62	44	40	55	4-12	9	360	260	130	170
HS13-2000/31	550	442	180	230	245~265	280	358	2-50	62	23	26	26	2-12	9	180	260	130	170
HS13-2000/41	730	442	180	230	245~265	280	358	2-50	62	23	26	26	2-12	9	360	260	130	170
HS13-3000/30	600	534	200	260	245~265	280	381	117	73	40	45	68	4-16	9	200	260	130	170
HS13-3000/40	790	534	200	260	245~265	280	381	117	73	40	45	68	4-16	9	400	260	130	170
HS13-3000/31	720	484	230	255	245~265	280	384	2-70	73	23	35	35	2-12	9	230	260	130	170
HS13-3000/41	920	484	230	255	245~265	280	384	2-70	73	23	35	35	2-12	9	460	260	130	170

Switch Blade Knife HS11F

Processing mode of base plate: Machining (rubber plate, epoxy plate)
Specification and model	Overall dimension												Installation dimension
	A	B	E	H	G	R	J	K	L	I	O	P	M	Φ	C	D
HS13BX-200/31	210	270	80	160	215~235	330	210	/	110	26	/	/	8	7	80	240
HS13BX-200/41	290	270	80	160	215~235	330	210	/	110	26	/	/	8	7	160	240
HS13BX-400/31	242	300	90	180	215~235	330	256	/	110	29	/	/	12	7	90	240
HS13BX-400/41	330	300	90	180	215~235	330	256	/	110	29	/	/	12	7	180	240
HS13BX-600/31	270	392	100	185	215~235	330	359	40	110	37	/	/	16	9	100	240
HS13BX-600/41	370	392	100	185	215~235	330	359	40	110	37	/	/	16	9	200	240
HS13BX-1000/31	330	442	120	230	240~260	330	358	50	105	23	26	26	2-12	9	120	240
HS13BX-1000/41	450	442	120	230	250~270	330	358	50	105	23	26	26	2-12	9	240	240
HS13BX-1500/31	360	484	130	255	250~270	330	384	70	110	23	35	35	4-12	9	130	260
HS13BX-1500/41	500	484	130	255	250~270	330	384	70	110	23	35	35	4-12	9	260	260
HS13BX-1500/30	360	484	130	255	250~270	330	384	70	110	23	35	35	4-12	9	130	260
HS13BX-1500/40	500	484	130	255	245~265	330	384	70	110	23	35	35	4-12	9	260	260
HS13BX-2000/30	500	474	180	230	245~265	330	358	97	120	44	40	55	4-12	9	180	260
HS13BX-2000/40	680	474	180	230	245~265	330	358	97	120	44	40	55	4-12	9	360	260
HS13BX-2000/31	550	442	180	230	245~265	330	358	2-50	120	23	26	26	2-12	9	180	260
HS13BX-2000/41	730	442	180	230	245~265	330	358	2-50	120	23	26	26	2-12	9	360	260
HS13BX-3000/30	600	534	200	260	245~265	330	381	117	110	40	45	68	4-16	9	200	260
HS13BX-3000/40	790	534	200	260	245~265	330	381	117	110	40	45	68	4-16	9	400	260
HS13BX-3000/31	720	484	230	255	245~265	330	384	2-70	110	23	35	35	2-12	9	230	260
HS13BX-3000/41	920	484	230	255	245~265	330	384	2-70	110	23	35	35	2-12	9	460	260
